XMBL 420mm Overflow Continuous Laboratory Rod Mill Coal Grinding

I'm Online Chat Now

XMBL 420mm Overflow Continuous Laboratory Rod Mill Coal Grinding

XMBL 420mm Overflow Continuous Laboratory Rod Mill Coal Grinding
XMBL 420mm Overflow Continuous Laboratory Rod Mill Coal Grinding

Large Image :  XMBL 420mm Overflow Continuous Laboratory Rod Mill Coal Grinding

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: rod mill
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

XMBL 420mm Overflow Continuous Laboratory Rod Mill Coal Grinding

Name: Rod Mill Type: XMBL Type
Model: Overflow Type Feature: Continuous
Classification: Mill Material: Geology, Metallurgy, Coal, Building Materials
Purpose: Grinding Equipment Drum Size: Φ420×600
High Light:

420mm laboratory rod mill


600mm laboratory rod mill


1.5kw coal grinding ball mill

XMBL type overflow continuous rod mill

Main uses and features:

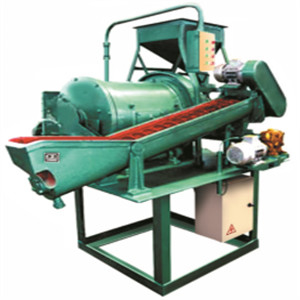

This machine is a closed-circuit grinding equipment composed of a pendulum feeder, a rod mill, a screw classifier, a screw conveyor, etc. use. It can also be used for grinding equipment in beneficiation and concentration plants, or for grinding fine materials in other industrial sectors.



Main technical parameters of XMBL type overflow continuous rod mill
Parameter item Unit XMBL-Φ420×600
Drum size mm Φ420×600
Grinding drum speed r/min 53
Grinding cylinder volume L 80
Feed particle size mm -6
Discharge particle size mm -0.5以下
Motor Power kw 1.5
Processing capacity kg/h 150
Dimensions mm 1800×1260×l730
weight kg 950



Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
