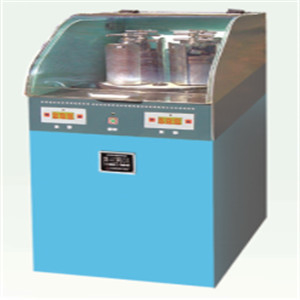

Four Cylinder Laboratory Grinding Mill

I'm Online Chat Now

Four Cylinder Laboratory Grinding Mill

Four Cylinder Laboratory Grinding Mill
Four Cylinder Laboratory Grinding Mill

Large Image :  Four Cylinder Laboratory Grinding Mill

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: four-cylinder ball mill
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

Four Cylinder Laboratory Grinding Mill

Name: Four-cylinder Ball Mill Model: Planetary Four-cylinder
Classification: Mill Type: XPML-Φ100×4
Purpose: Food, Medicine, Usage: Dry & Wet Grinding
Number Of Grinding Cylinders: 4 Piece Turntable Speed: 100-350r/min
High Light:

100r/min Laboratory Grinding Mill


350r/min Laboratory Grinding Mill


5MM planetary ball mill for laboratory

Planetary four-cylinder ball mill

Main uses and features:

This machine is a high-efficiency, multi-grain adjustable grinding equipment. Because the grinding body is in the centrifugal force field of 12-13g for grinding motion, the grinding efficiency is high, and the discharge particle size is fine and uniform. The equipment adopts AC frequency conversion technology, which can realize the stepless speed regulation of the grinding disc, and has a wide range of speed regulation, stable speed change, and a timing device to ensure the repeatability of grinding conditions. In addition, different specifications of agate material grinding cylinders can be selected to be suitable for grinding various materials, suitable for grinding and ultra-fine grinding of iron-avoiding materials. The machine can be used for dry grinding as well as for wet grinding. It can be used as abrasive, as well as for mixing and homogenizing. It can be used as the necessary grinding equipment for laboratories in geology, metallurgy, coal, building materials, chemical industry, hydropower, light industry, agriculture, environmental protection, food, medicine, national defense, colleges and universities, scientific research units and other departments and industries.



Main technical parameters of planetary four-cylinder ball mill
Parameter item Unit XPML-Φ100×4
Number of grinding cylinders piece 4
Turntable speed r/min 100-350
Grinding drum speed r/min 224-896
Feed particle size mm 1-5
Discharge particle size mm 0.074
Electric motor kw Y90L-4 1.5Kw
Dimensions mm 600×666×1067
Body net weight kg 240



Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.

Four Cylinder Laboratory Grinding Mill 0


FAQ to save your precious time!


Q1: What's the standard length of your profiles and tube?

A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.


Q2: What's your MOQ?

A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.


Q3: what is your payment terms?

A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.


Q4: What's the lead time for small order and mass production?

A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.


Q5: What certification do you have?

A: We have ISO 9001:2008 certificate.
