Product Details:
|
| Name: | Ball (Rod) Mill | Classification: | Mill |
|---|---|---|---|
| Model: | Grinding Function Index | Type: | XMGQΦ305 |
| Purpose: | Determination Of The Grinding Function Index Of Various Ores | Speed: | 70 0.5R/min |
| Inside Diameter×Inside Length: | Φ305×305mm | ||
| High Light: | 0.5R/min Grinding laboratory rod mill,laboratory rod mill 305mm,bond ball mill work index ISO9001 |
||

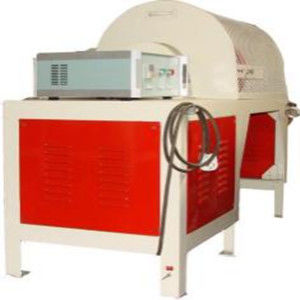

Grinding Function Index Ball (Rod) Mill XMGQΦ305 Work Index Ball Mill
Introduction:
XMGQΦ305 Grinding function index ball (rod) The mill is mainly used to measure the grinding function index of various ores, slag and other materials. Dry grinding is carried out at a specific number of revolutions, and the product is screened and weighed, and repeated for many times, and the grinding work index (kWh/t) is calculated.
Technical Parameters:
| Item | Parameters | Unit | |
| XMGQ- Φ305×305 | XMGB- Φ305×610 | ||
|
Inside diameter×Inside length |
Φ305×305 |
Φ305×610 |
mm |
|
Speed |
70 |
46 |
R/min |
| Power |
0.75 |
1.1 |
kw |
| Steel ball(bar) Weight | 20.568 | 33.38 | kg |
| Feed Size |
<3.2 |
<12.7 |
mm |
| Once Feeding Volume | 700 | 1250 | cm3 |
| Outline Size | 1500×650×1100 | 930×610×1185 | mm |
| Weight |
330 |
400 |
kg |
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
