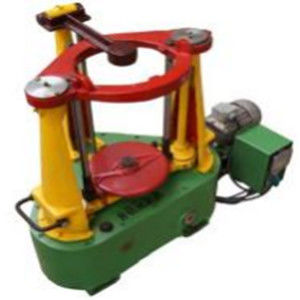

200mm 8 Deck Electric Vibrating Screen Machine SDB-200 For Laboratory

200mm 8 Deck Electric Vibrating Screen Machine SDB-200 For Laboratory

MOQ: 1
Price: negotiate
Standard Packaging: Standard export packing is provided, and customized packing is available upon request.
Delivery Period: 1-3 working day
Payment Method: T/T,L/C
Detail Information
Place of Origin
China
Brand Name
Y&X
Certification
ISO 9001
Model Number
SDB-200
Name:
Standard Sieve
Classification:
Sieve The Dispersed Material
Type:
SDB-200
Opening Size:
200×50×0.038~2.5
No. Of Decks:
8 Sieve
Sieve Diameter:
200 Mm
Sieving Range:
0.045-2.5 Mm
Motor Power:
0.37 Kw
Motor Speed:
1400 R/min
Outline Size:
933x432x785 Mm
Weight:
107 Kg
Application:
Geology, Metallurgy, Coal, Chemical Labs
Highlight:

200mm vibrating sieve machine

,

SDB-200 eight deck screener

,

laboratory sample screening equipment

Product Description
Standard Sieve Machine for Laboratory 200mm sieve frames | SDB-200 8 decks | SPB-200 5 decks | 0.045~2.5 mm sieving range
Introduction

It is suitable for sieving dispersed materials in laboratories or production units of geology, metallurgy, coal, building materials, abrasives, chemical industry, medicine, food, environmental protection and other departments. This machine is mainly composed of organic body, screen mesh and transmission mechanism.

Technical Parameters:
NameUnitValue (SDB-200)Value (SPB-200)
ModelSDB-200SPB-200
Opening sizemm200*50*0.038~2.5 (GB6003-85)200*50*0.038~2.5 (GB6003-85)
No. of decksfloor85
Optimum range of sievingmm0.045~2.50.045~2.5
Vibration Freq. sieveMin-1221290
Rocking back and forth travel of sievemm2525
Impact timesMin-1147156
Stroke lengthmm9638 6
Screening efficiency%9595
Repeatability error%22
Charging massg200200
Feeding volumeCM3143w0.5143w0.5
NoiseDb(A)8282
Motor PowerKw0.370.37
SpeedR/min14001400
Outline sizemm933*432*785933*432*785
Weightkg107123
Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.

200mm 8 Deck Electric Vibrating Screen Machine SDB-200 For Laboratory
FAQ

Q1: How many sieve decks does this machine hold?

A: The SDB-200 model holds 8 sieve decks and the SPB-200 model holds 5, both using 200x50 mm sieve frames with openings from 0.038 to 2.5 mm.

Q2: Which particle size range can it screen?

A: The optimum range of sieving is 0.045 to 2.5 mm, with a screening efficiency of 95% and a repeatability error of 2%.

Q3: Which materials and industries is it suitable for?

A: It is suitable for sieving dispersed materials in laboratories or production units of geology, metallurgy, coal, building materials, abrasives, chemical industry, medicine, food and environmental protection.
