Continuous Laboratory Flotation Machine for Semi-Industrial Test
  • name

Continuous Laboratory Flotation Machine for Semi-Industrial Test

MOQ: 1
Price: Negotiate
Standard Packaging: Standard export packing is provided, and customized packing is available upon request.
Delivery Period: 1-3 working days
Payment Method: T/T,L/C
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Y&X
Certification
Iso 9001
Model Number
ring-ejection continuous flotation machine
Name:
Ring-ejection Continuous Flotation Machine
Attributes:
Flotation Machine
Model:
Ring-ejection Continuous
Type:
XFL Series
Machine:
Laboratory Mahine
Test:
Semi-industrial Production Test
Material:
Small Amount Of Minerals
Origin:
China
Highlight:

7L mechanical flotation cell

,

88MM mechanical flotation cell

,

mechanical flotation cell odm

Product Description

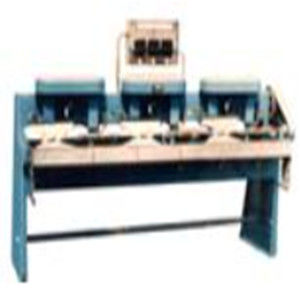

XFL Mechanical Flotation Cell Ring Ejection Continuous Flotation Machine Cell
Product Overview

XFL series ring-ejection continuous flotation machine is designed for continuous flotation and semi-industrial production testing of small mineral quantities in laboratory environments.

Technical Specifications
No.ProjectUnitXFL2-7XFL6-7XFL2-12XFL6-12XFL2-3XFL6-3
1Slot selection volumeL77121233
2Number of slotsgroove262626
3Diameter of impellermmΦ88Φ88Φ100Φ100Φ60Φ60
4Impeller speedr/min600,800,10001200,1500,1800
5Scraper speedr/min15,18,2211.5,14.5,16.4,17.5,20.7,2511.5,14.5,16.4,17.5,20.7,25
6Feeding particle sizemm0.2~0.4<0.2
7Motor (1 unit/2 slots)-A06334 370WA07114 550WJW6324 250W
8Dimensionsmm530*1020(1590)*580667*600(2000)*980536*460(1280)*536
9Weightkg7520012024050100
Company Profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical capabilities.

As a family-owned group, our mission from the beginning has been to expand overseas markets and provide one-stop professional solutions for international mining companies.

The company specializes in the research and supply of mineral processing reagents and equipment, including mineral processing equipment and laboratory mineral processing equipment. Our products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, research departments, dressing plants, and mineral processing laboratories in colleges and universities.

Our laboratory equipment for mineral processing includes crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia, Tanzania, Nigeria and other countries and regions.

The enterprise has passed the ISO9001 quality management system certification, and product quality conforms to relevant technical standards promulgated by the state and enterprise requirements.

XFL Mechanical Flotation Cell Ring Ejection Continuous Flotation Machine
Frequently Asked Questions
Q1: What is the XFL series ring-ejection continuous flotation machine used for?
A: It is used for continuous flotation and semi-industrial production test of a small amount of minerals in the laboratory. It is widely applied in mineral processing laboratories of universities, research institutes and dressing plants for continuous flotation tests and process research.
Q2: What models are available?
A: The XFL series includes XFL2-7, XFL6-7, XFL2-12, XFL6-12, XFL2-3 and XFL6-3 models with 2 or 6 slots. The slot selection volume is 3L, 7L or 12L, and the feeding particle size is 0.2~0.4mm or less than 0.2mm.
Q3: What are the impeller and scraper speeds?
A: The impeller speed is 600, 800 or 1000 r/min for the 2-slot and 6-slot 7L/12L models, and 1200, 1500 or 1800 r/min for the 3L models. The scraper speed ranges from 11.5 to 25 r/min.
Q4: What are the motor, dimensions and weight?
A: The motors are A06334 370W, A07114 550W and JW6324 250W (1 unit per 2 slots). The dimensions range from 530*1020(1590)*580mm to 667*600(2000)*980mm, and the weight ranges from 50kg to 240kg.
Q5: What is your MOQ and delivery time?
A: Our MOQ is 1 unit for trial orders. Small orders can be delivered within 1-3 working days, and mass production usually takes 3-10 working days. The final lead time will be confirmed on each individual invoice.
Q6: What after-sales service and certification do you provide?
A: We provide complete after-sales support including installation guidance, operation training and spare parts supply. The company has passed the ISO9001 quality management system certification, and every machine is strictly inspected before shipment.
Tags:

1.5L Laboratory Flotation Machine,

73MM multi energy laboratory flotation cell,

5L laboratory flotation cell
