Concentration Equipment Mining Thickener

I'm Online Chat Now

Concentration Equipment Mining Thickener

Concentration Equipment Mining Thickener
Concentration Equipment Mining Thickener

Large Image :  Concentration Equipment Mining Thickener

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: thickener
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

Concentration Equipment Mining Thickener

Description
Name: Thickener Type: NSL-66
Material: Gold Ore Purpose: Chemical Industry
Feature: Energy Saving Machine: Equipment For Dewatering The Processed Product (slurry) Of Wet Beneficiation
Advantage: Convenient Operation Weight: 130kg
High Light:

130kg Concentration Equipment

,

700mm Concentration Equipment

,

530mm mining thickener

NSL-66 thickener, be used in the cyanidation leaching of gold ore



Main application and working principle:

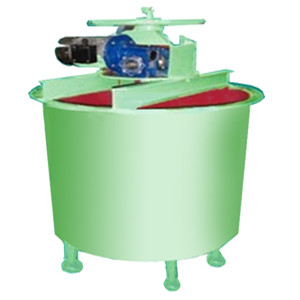

This machine is used in the cyanidation leaching of gold ore in the zinc powder exchange and gold extraction process. It is a special equipment for solid-liquid separation and washing of the pulp after cyanidation leaching. Dewatering operations in light industry, chemical industry and environmental protection industry. It has the characteristics of small footprint, energy saving, simplified process configuration, reduced auxiliary equipment and convenient operation. NSL-66 laboratory thickener is a kind of equipment for dewatering the processed product (slurry) of wet beneficiation. It consists of a thickening tank and a mechanical scraper. The solid ore particles of the slurry entering the concentration tank settle to the bottom of the tank under the action of its own gravity to achieve solid-liquid separation. The water overflows from the overflow port on the side of the pool to achieve the purpose of dehydration and concentration.



Parameter

The main technical parameters
parameter item Unit NSL-66
Tank size (diameter x height) mm Φ700×530
Rake speed r/min 0.284
Rake lift height mm 50
Precipitation area 0.385
throughput kg/h 9.6~320
power kw 0.37
Voltage V 380
Dimensions mm 906×784×1008
quality kg 130



Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
