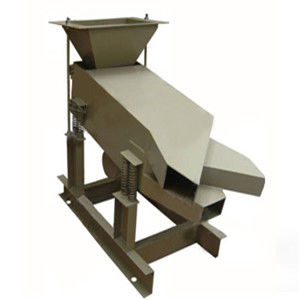

XSZ-600x300 Single Double Layer Vibrating Screen Machine Up to 5 Tons Per Hour

XSZ-600×300 single and double-layer vibrating screen machine is suitable for screening materials in laboratories or production sites in departments of geology, metallurgy, chemical industry, coal, etc. This screening machine can divide the materials into two or three grades at the same time. If only two grades are to be screened, a blank screen frame can be placed at the lower part of the upper screen body to support the screen frame for single-layer use.. According to the needs of use, the four-layer screen can be replaced, and various grades of products can be screened.

The structure of the machine:

 It is mainly composed of screen frame, base, feeding funnel, support device, flexible foot, support spring, inclination adjustment device, material receiving barrel, tensioning device and other components.

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies. The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities. Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment. Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions. The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.

Q1: How many grades can this screen separate at the same time?

A: It divides the material into two or three grades at the same time. If only two grades are needed, a blank screen frame can be placed at the lower part of the upper screen body for single-layer use, and the four-layer screen can be replaced as required.

Q2: What are the capacity and motor specifications?

A: The production capacity is under 5 t/h with a 0.55 kw motor. The screen measures 600x300 mm with an area of 0.18 M2, mesh sizes of Φ7 and Φ5, and a feed particle size of 30 mm.

Q3: Where can it be used?

A: It is suitable for screening materials in laboratories or production sites in the departments of geology, metallurgy, chemical industry and coal.
