Advanced SUS Stainless Steel Blast Drying Oven with Three-Dimensional Hot Air Circulation and Multiple Safety Protections
  • name
  • name

Advanced SUS Stainless Steel Blast Drying Oven with Three-Dimensional Hot Air Circulation and Multiple Safety Protections

MOQ: 1
Price: Negotiate
Standard Packaging: Cartons
Delivery Period: 1-3 working day
Payment Method: T/T,L/C
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Y&X
Certification
ISO9001
Model Number
Electric blast oven
Name:
Electric Blast Oven
Type:
Electric Blast Oven
Model:
OW-881—TG
Function:
Electric Blast
Attributes:
Blast Oven
Application:
Laboratory
Origin:
China
Purpose:
Mine
Highlight:

advanced mineral testing machine

,

blast drying oven mineral testing machine

,

blast drying oven mineral testing

Product Description

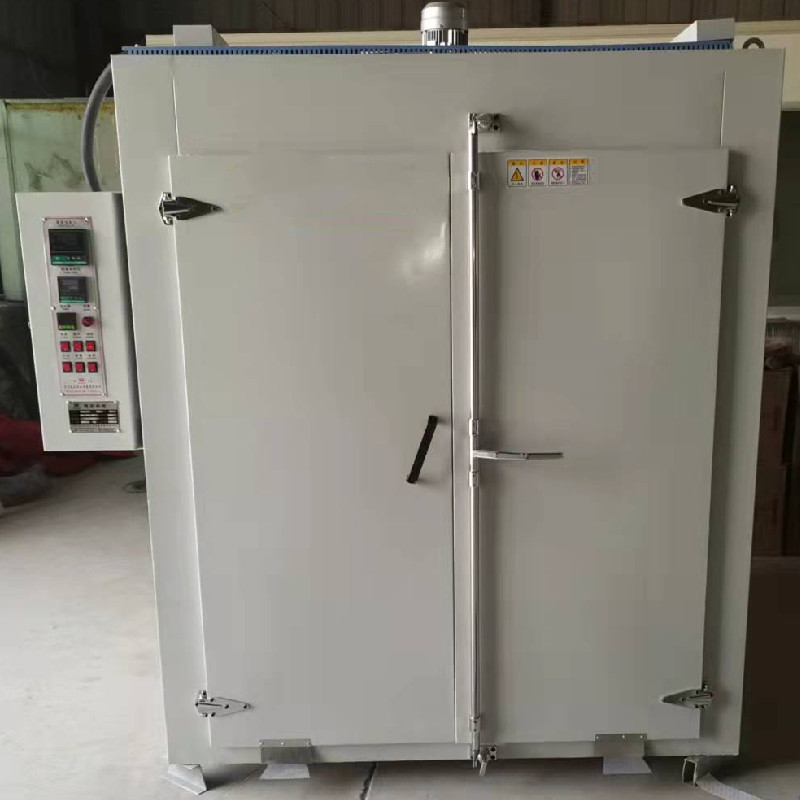

Advanced Mineral Testing Machine Electric Blast Oven For Laboratory
Product Overview

The Electric Blast Oven is engineered with market-tested components, primarily imported, ensuring exceptional stability and aging resistance. Featuring advanced safety protection systems and energy-efficient design, this oven delivers high performance with minimal failure rates for demanding laboratory applications.

Technical Specifications
ParameterSpecification
ModelOW-881-TG
Inner Box Size550mm (H) * 550mm (W) * 450mm (D)
Outer Box Size970mm (H) * 1030mm (W) * 730mm (D)
Temperature RangeRT +10℃ to 300℃ (adjustable)
Temperature Resolution0.1℃
Temperature Fluctuation±0.5℃
Temperature Uniformity±3℃
Heating RateRoom temperature to 200℃ in approximately 20 minutes
Heating Power4.5KW (30% power usage after reaching constant temperature)
Power Supply220V ±10%, 50±0.5Hz, 2-phase 2-wire
Construction & Materials
  • Inner Box: 1.2mm SUS stainless steel
  • Outer Box: 1.2mm high-quality SPCC 201 cold-rolled sheet
  • Insulation: 100mm imported aluminum silicate fiber rock wool
  • Structural Frame: National standard channel steel and angle steel
  • Sealing: Fully argon arc welded seams with high-temperature resistant coating
  • Exhaust System: 60mm diameter adjustable exhaust valve
Temperature Control System
  • High-precision dual display controller with PID automatic computing
  • K-type armored thermocouple temperature measurement
  • Setting accuracy: 1℃
  • Instrument setting range: 0℃ to +300℃
  • Emergency stop switch for equipment safety
  • SSR temperature control with stainless steel heating tubes
Blower System
  • Three independent air duct design for optimal airflow
  • YBX3 high-efficiency energy-saving embedded high-temperature resistant motor
  • 40W configuration with special centrifugal fan
  • External punching protects the deflector for precise hot air distribution
  • Premium Schneider electrical components for reliability
Safety Protection Systems
  • Over-temperature protection with sound and light alarm
  • Leakage protection
  • Fan overload protection
  • Over-current protection
  • Phase sequence and phase loss protection
  • Thermal overload protection for motor safety
  • Emergency shutdown function for unstable power input
Environmental Requirements
Operating Temperature: -30℃ to 70℃
Relative Humidity: ≤85% RH
Atmospheric Pressure: 86-106 Kpa
Clearance Space: ≥600mm around equipment

Install in well-ventilated area free from strong vibration, direct sunlight, heat radiation, strong airflow, electromagnetic fields, high dust concentration, and corrosive substances.

Frequently Asked Questions
What is the temperature range and control accuracy of this blast drying oven?
The temperature range is RT +10℃ to 300℃ (adjustable), with a temperature resolution of 0.1℃, temperature fluctuation of ±0.5℃, and temperature uniformity of ±3℃, meeting strict laboratory drying and testing requirements.
What material is the inner chamber made of?
The inner box is made of 1.2mm thick SUS stainless steel with fully argon arc welded seams and high-temperature resistant coating, providing excellent corrosion resistance and durability in mineral sample and reagent environments.
How does the hot air circulation system ensure uniform drying?
The oven adopts a three-dimensional hot air circulation system with an independent three-air-duct design and a high-temperature resistant centrifugal fan, ensuring uniform temperature distribution in the whole chamber and consistent drying of samples at different positions.
What safety protection systems are included?
It is equipped with multiple safety protection systems including over-temperature protection, leakage protection, fan overload protection, over-current protection, and phase sequence protection, with automatic alarm and emergency shutdown functions for unstable power input.
What are the typical applications of this oven?
It is widely used for drying ore samples, concentrate and tailings filter cakes, experimental utensils and other materials in mineral processing laboratories, geological testing institutes and mining quality inspection scenarios, as well as for drying, baking, heat treatment and sterilization in industrial enterprises and research institutes.
Ordering & Support
Warranty Period: 1 year from delivery date
Included Documentation: Operating instructions, factory inspection certificate, after-sales guarantee
Tags:

300°C Temperature Range Blast Drying Oven,

Forced-Air Circulation Electrothermal Drying Oven,

Precise Temperature Control Laboratory Drying Oven
