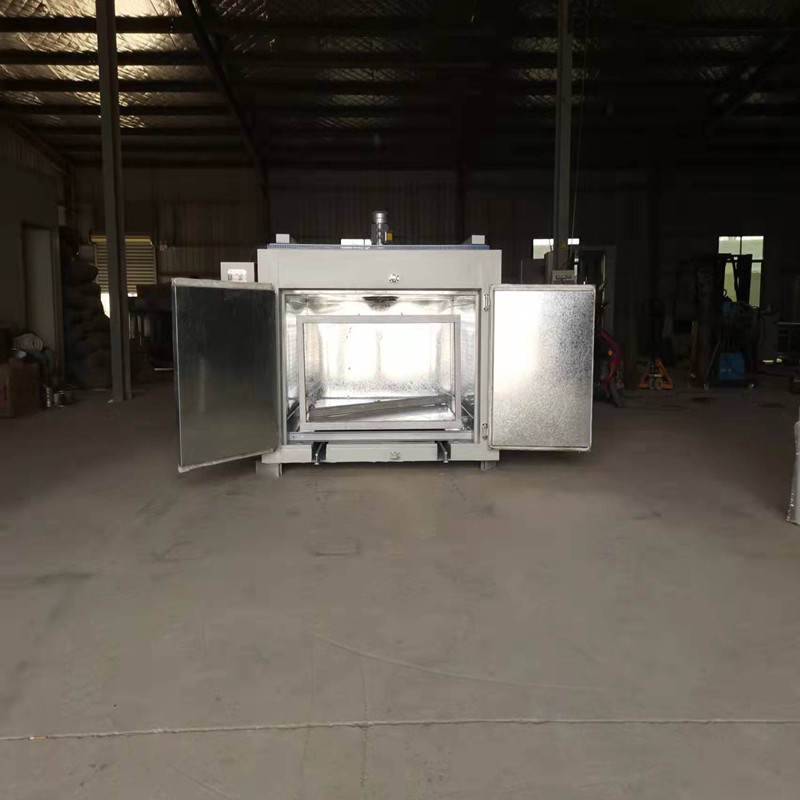

Laboratory Blast Drying Oven Electric Heated Thermostatic with 220V Power Supply

Laboratory Blast Drying Oven Electric Heated Thermostatic with 220V Power Supply

Our laboratory drying oven features market-tested components, primarily imported, ensuring exceptional stability and aging resistance. Built with advanced technology, it offers extremely low failure rates, high stability, and excellent cost performance.

Equipped with comprehensive safety protection systems including over-temperature protection, leakage protection, fan overload protection, over-current protection, and phase sequence protection. Automatic alarm systems activate during abnormal conditions with emergency shutdown functionality for unstable power input.

The environmentally conscious design prioritizes energy efficiency and environmental protection, featuring high-quality fan components and optimized air duct circulation for minimal operational noise and improved working conditions.

Technical Specifications

Construction & Materials

• Inner Box:SUS stainless steel 1.2mm
• Outer Box:High-quality SPCC 201 1.2mm cold rolled sheet
• Insulation:Imported aluminum silicate fiber rock wool, 100mm thickness
• Structural Framework:National standard channel steel and angle steel
• Control System:SSR thyristor dual display control with automatic blasting and heating
• Temperature Sensor:K-type armored thermocouple
• Exhaust System:60mm diameter adjustable exhaust valve
• Sealing:Fully welded argon arc seams with high-temperature resistant coating

Temperature Control Systems

• Controller:High-precision dual display with PID automatic computing
• Temperature Measurement:K-type thermocouple
• Setting Accuracy:1°C
• Setting Range:0°C to +300°C
• Emergency Stop:Control cabinet emergency stop switch
• Heating Elements:High-temperature resistant stainless steel heating tubes
• Heating Power:4.5KW (30% power usage after reaching constant temperature)

Blower System

• Air Duct Design:3 independent air ducts with upper blower motor and centrifugal fan
• Blower Motor:YBX3 high-efficiency energy-saving embedded high-temperature resistant motor
• Electrical Components:Schneider/Himanton brand contactors, protection devices, and solid state relays

Safety Protection Systems

• Over-temperature protection with heating cutoff and audible/visual alarm
• Total power phase sequence and phase loss protection
• Leakage protection
• Thermal overload protection for motor safety

Power Requirements

220V ±10%, 50Hz ±0.5Hz, 2-phase 2-wire, Installation power: 5KW

Environmental Requirements

• Temperature: -30°C to 70°C
• Relative Humidity: ≤85% RH
• Atmospheric Pressure: 86-106 Kpa
• No strong vibration, direct sunlight, or heat radiation
• No strong airflow, electromagnetic fields, or corrosive substances
• Minimum 600mm clearance around equipment

Additional Information

• Warranty:1 year from delivery date
• Documentation:Operating instructions, factory inspection certificate, after-sales guarantee
• Optional Features:Touch LCD screen, PLC programming, temperature modules, RS485 port, MODBUS protocol, data export

About Y&X Beijing Technology Co., Ltd.

Established in 2014 and headquartered in Beijing, Y&X Beijing Technology Co., Ltd. has evolved into a professional enterprise integrating scientific research, design, product development, and manufacturing. Our mission focuses on expanding overseas markets and providing comprehensive solutions for mining companies worldwide.

We specialize in mineral processing reagents and equipment, including both industrial and laboratory mineral processing systems. Our products serve diverse industries including metallurgy, geology, petroleum, coal, chemicals, building materials, and environmental protection.

Laboratory Equipment Portfolio:Crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking tables, chutes, and gravity separation equipment.

Global Reach:Our products are successfully deployed in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia, Tanzania, Nigeria, and other international markets.

Quality Certification:ISO9001 quality management system certified with compliance to national and enterprise technical standards.

It is mainly used for drying, baking, heating, waxing and certain sterilization applications in laboratories, factories, mining enterprises, universities and research institutions.

Standard 101-series models listed in the manual can reach approximately300°C.

Different models use different power supplies. Smaller models use220V/50Hz,

Model selection should be based on required chamber volume, sample quantity, operating temperature, input power and available electrical supply. Contact Y&X with your sample type and required capacity for model selection.

Frequently Asked Questions

Q1: What is the temperature range and control accuracy of this blast drying oven?

A: The temperature range is RT +10℃ to 300℃ (adjustable), with a temperature resolution of 0.1℃, temperature fluctuation of ±0.5℃, and temperature uniformity of ±3℃, meeting strict laboratory drying and testing requirements.

Q2: What material is the inner chamber made of?

A: The inner box is made of 1.2mm thick SUS stainless steel with fully argon arc welded seams and high-temperature resistant coating, providing excellent corrosion resistance and durability in mineral sample and reagent environments.

Q3: How does the hot air circulation system ensure uniform drying?

A: The oven adopts a three-dimensional hot air circulation system with an independent three-air-duct design and a high-temperature resistant centrifugal fan, ensuring uniform temperature distribution in the whole chamber and consistent drying of samples at different positions.

Q4: What safety protection systems are included?

A: It is equipped with multiple safety protection systems including over-temperature protection, leakage protection, fan overload protection, over-current protection, and phase sequence protection, with automatic alarm and emergency shutdown functions for unstable power input.

Q5: What are the typical applications of this oven?

A: It is widely used for drying ore samples, concentrate and tailings filter cakes, experimental utensils and other materials in mineral processing laboratories, geological testing institutes and mining quality inspection scenarios, as well as for drying, baking, heat treatment and sterilization in industrial enterprises and research institutes.
