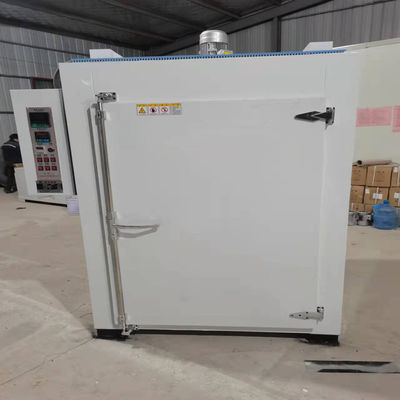

Industrial Digital Display Blast Drying Oven Electric Heated

Industrial Digital Display Blast Drying Oven Electric Heated
Industrial Digital Display Blast Drying Oven Electric Heated

Large Image :  Industrial Digital Display Blast Drying Oven Electric Heated

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: Electric blast oven
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US$ 2500-40000/piece
Payment Terms: T/T

Industrial Digital Display Blast Drying Oven Electric Heated

Name: Electric Blast Orying Oven Temp. Range: Rt+10~250 Degrees
Power Supply: , 2-phase 2-wire. Installation Power 5KW. Relative Humidity:: ≤85%RH.
Atmospheric Pressure:: 86~106Kpa Heating Power: Use 30% Power After Constant Temperature)
Equipment Use Environment: The Site Is Well Ventilated. Temperature: -30℃
High Light:

electric heated blast drying oven


digital display blast drying oven


industrial electric blast drying oven

Laboratory Electric Heated Thermostatic Blast Drying Oven

Product description
The parts used in the product are all products that have been tested in the market for many years and are generally recognized by the market. Most of them are imported products. Our thousands of selected parts ensure the stability and aging resistance of the whole product in use. . Adopt advanced and mature technology and equipment to create a product with extremely low failure rate, high stability and good cost performance, equipped with a variety of safety protection devices, including over-temperature protection, leakage protection, fan overload protection, overload, over Current protection, phase sequence protection and other safety devices will automatically alarm when abnormal conditions occur during operation, and have an emergency shutdown function when the input power is found to be unstable. Fully protect the safety of the product itself and the surrounding environment, the overall design is reasonable, the details are properly handled, and the whole machine is beautiful and generous. In the design, the environmental protection and energy situation of today's world are fully taken into account. In the selection of parts and materials and the design of products, try to be more energy-saving, more environmentally friendly and more reasonable, and fully meet the requirements of modern enterprises for environmental protection and energy conservation. High-quality fan components and reasonable air duct circulation system are selected.


1. Main technical parameters:
1 Model: OW-881—TG

Inner box size: 550 high x 550 wide x 450 deep
Outer box size: 970 high, 1030 wide, 730 deep


c c Temperature resolution: 0.1°
  Temperature fluctuation: ±0.5°
  Temperature uniformity: ±3°
2 Temperature range:
a RT.+10℃~300℃ (the temperature range can be adjusted arbitrarily).
3 Heating and cooling rate:
a From room temperature to 200℃, about 20 minutes (display value).
2. Structure and material:
1 Inner box material: The inner material is SUS stainless steel 1.2mm
2 Outer box material: The outer material is high quality SPCC 201 1.2mm cold rolled sheet
3 Insulation layer: The insulation material is imported aluminum silicate fiber rock wool, which can avoid unnecessary energy loss.
4 Structural materials, made of national standard 8# channel steel and 10# channel steel, 10#H steel and 5# angle steel
5 Thickness of insulation layer: 100mm.
8 Control method: SSR thyristor dual display control, the whole process of blasting and heating is automatically completed
9 Temperature measuring body: K-type armored thermoelectric corner.
10 Special design, space saving and moderate operation height, easy maintenance.
11 Exhaust: 60mm diameter, 1 exhaust valve, the exhaust volume can be adjusted
12 Internal sealing of the box: all splicing gaps inside are fully welded by argon arc welding and coated with high temperature resistant glue


Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.

Industrial Digital Display Blast Drying Oven Electric Heated 0




Q1: What's the standard length of your profiles and tube?

A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.


Q2: What's your MOQ?

A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.


Q3: what is your payment terms?

A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.
