30r/Min Xfd Type Laboratory Flotation Machine Mining Single Tank Easy Adjustment

I'm Online Chat Now

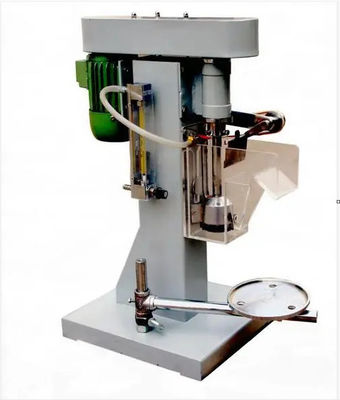

30r/Min Xfd Type Laboratory Flotation Machine Mining Single Tank Easy Adjustment

30r/Min Xfd Type Laboratory Flotation Machine Mining Single Tank Easy Adjustment
30r/Min Xfd Type Laboratory Flotation Machine Mining Single Tank Easy Adjustment

Large Image :  30r/Min Xfd Type Laboratory Flotation Machine Mining Single Tank Easy Adjustment

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: flotation machine
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

30r/Min Xfd Type Laboratory Flotation Machine Mining Single Tank Easy Adjustment

Name: Flotation Machine Type: XFD Type, XFDⅣ Type
Model: Single Tank Purpose: Gold, Building Materials
Advantage: Easy Adjustment Scraper Speed: 15、30r/min
Technology: Frequency Conversion Technology Weight: 30kg
High Light:

xfd type laboratory flotation machine


30r/min laboratory flotation machine


easy adjustment lab flotation machine

XFD Type Laboratory Mining Single Tank Flotation Machine


Main uses and characteristics:

Laboratory single-cell flotation machine is mainly used for mineral processing laboratories and scientific research units in geology, metallurgy, gold, building materials, coal, chemical mine dressing plants, and mineral processing teaching and research in colleges and universities. It is used for stirring, scrubbing, separation and Select a small amount of mineral samples, etc. XFDn series single-slot flotation machine adopts frequency conversion technology, stepless speed regulation of impeller, digital display, easy adjustment, stable and accurate display. The machine also adds an external inflation device, and improves the scraper device for stepless speed regulation. Automatic adjustment of water replenishment and automatic drug delivery device to realize flotation automation.The single cell flotation machine is driven by the triangle generation drive of the motor to rotate the impeller, which produces centrifugal action to form a negative pressure. On the one hand, sufficient air is sucked in to mix with the pulp, on the other hand, the pulp is stirred to mix with drugs, and at the same time, the foam is refined, so that the minerals are bonded to the foam and floated to the pulp surface to form a mineralized foam.



Main technical parameters of XFD type, XFDIV series single-cell flotation machine
No. Project Unit Specifications and parameters of flotation machine
  Flotation cell volume L 0.25 0.37 0.5 0.75 1.0 1.5
1 Impeller speed XFD r/min 2130,2310,2590 1700,1900,2100 1590,1750,1910
    XFD Ⅳ r/min 0-2800
2 Scraper speed XFD r/min 15,30
    XFD Ⅳ r/min 0-30
3 Scraper motor Model speed r/min 302A 0-30r/min
4 Heater XFD Ⅳ w 250w (Configure according to user needs)
5 Diameter of impeller mm Φ41 Φ45 Φ55 Φ60
6 Feeding partice size mm 0.05-0.2
7 Spindle motor model power XFD r/min DYS16-8 2800(r/min) 220v 75w(Three)
    XFD Ⅳ r/min YS-5612 2800(r/min) 220v 90w(Three)
8 Dimensions XFD mm 502 ×263×628 570×350×890
    XFD Ⅳ mm 580×350×890
9 Weight XFD kg 30 33
    XFD Ⅳ kg 30



Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.

30r/Min Xfd Type Laboratory Flotation Machine Mining Single Tank Easy Adjustment 0


FAQ to save your precious time!


Q1: What's the standard length of your profiles and tube?

A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.


Q2: What's your MOQ?

A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.


Q3: what is your payment terms?

A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.


Q4: What's the lead time for small order and mass production?

A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.


Q5: What certification do you have?

A: We have ISO 9001:2008 certificate.
