Product Details:
|
| Name: | Single Slot Flotation Machine XFD Series For Mining Industry | Model: | Single Slot Flotation Cell |
|---|---|---|---|
| Appertain: | Laboratory Flotation Machine | Keyword: | Single Slot Mechanical Flotation Cell |
| Purpose: | Scrubbing, Separating | Material: | Mineral Samples |
| Function: | Mineral Separator | Dimensions: | 502×263×628 |
| High Light: | XFD Series Single Slot Flotation Machine,Mineral Separator Single Slot Flotation Machine,Laboratory Single Slot Flotation Machine |
||

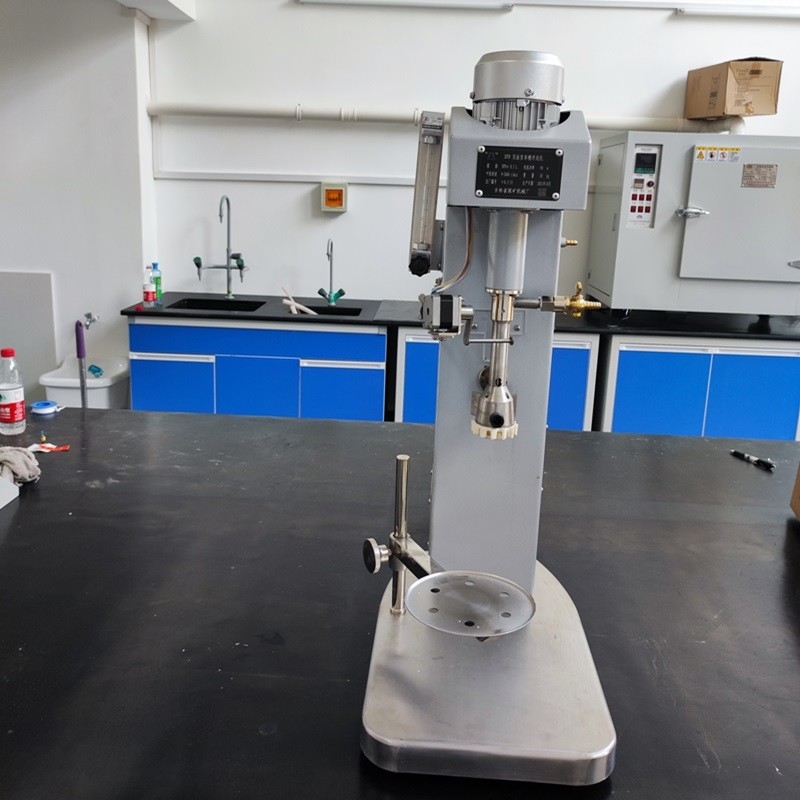

Single Slot Flotation Machine XFD Series for Mining Industry
Introduction
XFD series single-tank flotation machine is suitable for stirring, scrubbing, separating and selecting a small amount of mineral samples in the laboratories of mining and scientific research departments, such as geology, metallurgy, building materials, and chemical industry. XFDⅢ single-slot flotation machine is an updated product of XFD type. The machine adopts external inflation, inflation is adjustable, accurate and stable. It adopts frequency conversion technology, impeller stepless speed regulation, digital display, accurate adjustment and reliable operation.
XFD-12 laboratory multiple cell flotation machines applicable to used in flotation of non-ferrous metals, ferrous metals, non-metallic and coal that 35 mesh or less size fraction. It also can be used in float test on 125-3000g flotation sampls.
Parameter
| project | Unit | Main technical parameters of single cell flotation agent | ||||||
| Flotation cell volume | L | 0.5 | 0.75 | 1 | 1.5 | 3 | 8 | |
| Impeller speed | XFD | r/min | 2130,2340,2590 | 1700,1900,2100 | 1590,1750,1910 | 1544,1708,1890 | 1400 | |
| XFDⅢ | r/min | 0~2600 | -- | |||||
| Scraper speed | XFD | r/min | 15,30 | 7.9,19.1 | 8.6,12.9,17.2 | |||
| XFDⅢ | r/min | 14,20 | -- | |||||
| Diameter of impeller | mm | Φ45 | Φ55 | Φ60 | Φ70 | Φ100 | ||
| Feeding particle size | mm | 0.05~0.2 | ||||||
| Spindle motor | XFD | type | YS-5612 2800(r/min)90W three 220V | JW-6324 1410(r/min)250W three 220V | ||||
| XFDⅢ | YS-5612 120W | -- | ||||||
| Scraper motor | XFDⅢ | type | SD30 | -- | ||||
| Dimensions | XFD | 502×263×628 | 570×263×668 | 380×505×970 | ||||
| XFDⅢ | mm | 490×322×720 | 490×322×792 | -- | ||||
| weight | XFD | kg | 30 | 33 | 50 | 72 | ||
| XFDⅢ | kg | 28 | 30 | -- | ||||
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
