ZMT Vibrating Ball Mill Grinder For Laboratory Metallurgy Use

I'm Online Chat Now

ZMT Vibrating Ball Mill Grinder For Laboratory Metallurgy Use

ZMT Vibrating Ball Mill Grinder For Laboratory Metallurgy Use
ZMT Vibrating Ball Mill Grinder For Laboratory Metallurgy Use
ZMT Vibrating Ball Mill Grinder For Laboratory Metallurgy Use ZMT Vibrating Ball Mill Grinder For Laboratory Metallurgy Use

Large Image :  ZMT Vibrating Ball Mill Grinder For Laboratory Metallurgy Use

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: Vibration Mill
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

ZMT Vibrating Ball Mill Grinder For Laboratory Metallurgy Use

Description
Name: Vibration Mill Type: ZM-T
Purpose: Laboratory Metallurgy Model: Vibration
Feature: Light Weight Special Options:: Cylinder Lining
Discharge Particle Size: Down To 0.5mm Voltage: 220/380v
High Light:

0.5mm vibrating ball mill

,

4L vibrating ball mill

,

50L ball mill grinder laboratory

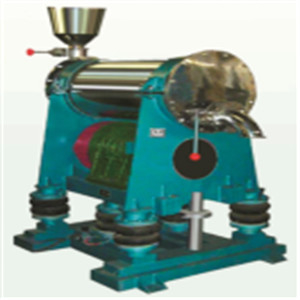

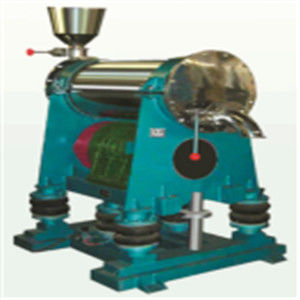

ZM-T Vibration Mill for Laboratory Metallurgy



Main uses and features:

Vibration mill is a ball-milling cavity fixed with the lower vibration mechanism. The vibration motor drives two adjustable eccentric blocks to rotate to make the cylinder vibrate, forcing the grinding medium and materials in the cylinder to vibrate at high frequency. The material is crushed by the strong impact, friction and shearing action of the grinding medium. The fine particles re-enter the ball milling chamber through the peristaltic pump through the screen bar at the lower part of the grinding chamber, and the coarse particles remain in the grinding chamber to continue ball milling. The machine is very mature in both structure and process configuration; it is widely used in electronics, ceramics, chemical industry, powder metal, tungsten, calcium carbide, rubber compounds, magnetic materials and high-frequency ceramic materials and pharmaceuticals in the radio industry. Special options: Cylinder lining, optional stainless steel, ceramic (alumina), zirconia, ceramic tile, nylon, teflon, food grade rubber or polyurethane lining. Features: 1. Simple and convenient operation, reliable work, easy to clean, and strong adaptability to working conditions. 2. No environmental pollution, dry and wet ball milling can be performed. 3. Light weight, small size, high efficiency, can be made into continuous production type.



Parameter

Main technical parameters of ZM-T vibration mill
Item Parameter
Grinding jar volume 1~50L can be specified according to needs(for example: ZM-T4 is a 4L volume vibration ball mil)
Grinding jar lining Stainless steel, ceramics,zirconia, nylon. PTFE, polyurethane, etc. can be selected according to needs
Maximum filling per can The material and grinding medium do not exceed two-thirds of the volume
Feed particle size Crunchy materials<20cm, others<10cm
Discharge particle size down to 0.5mm
Vibration frequency and amplitude Frequency 23/46HZ,amplitude 5-7mm
Voltage 220/380v





Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
