Product Details:
|
| Name: | Stirring Continuous Flotation Machine | Type: | FXⅡ Type |
|---|---|---|---|
| Model: | Mechanical Stirring Continuous | Purpose: | Metallurgy, Geology |
| Test: | Semi-industrial Production Test | Slot Selection: | 1.5L |
| Number Of Slots: | 2groove | Diameter Of Impeller: | Φ70mm |
| High Light: | 1.5L Laboratory Flotation Machine,20r/min Laboratory Flotation Machine,25kg laboratory safety equipment |
||

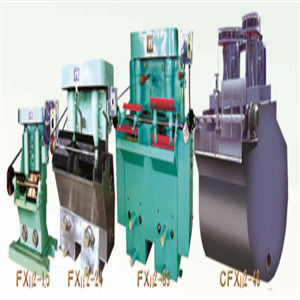

FXⅡ type mechanical stirring continuous flotation machine
Main uses and characteristics:
FXⅡ series mechanical stirring continuous flotation machine is suitable for continuous flotation and semi-industrial production test of a small amount of minerals in scientific research institutions such as metallurgy, geology, chemical industry and building materials.
Parameter
| Main technical parameters of FXⅡ type mechnical stirring continuous flotation machine | |||||||||||
| Project | Unit | FXⅡ2-1.5 | FXⅡ2-3 | FXⅡ2-5 | FXⅡ2-7 | FXⅡ2-12 | FXⅡ2-24 | FXⅡ2-39 | CFX-12 | CFX-24 | CFX-48 |
| Slot selection volume | L | 1.5 | 3 | 5 | 7 | 12 | 24 | 39 | 12 | 24 | 48 |
| Number of slots | groove | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Diameter of impeller | mm | Φ70 | Φ110 | Φ100 | Φ110 | Φ130 | Φ170 | Φ200 | Φ130/105 | Φ148/140 | Φ185/175 |
| Impeller speed | r/min | 1400 | 1332,1600,1836 | 1120-1400 | 1050-1320 | 700,915,1100 | 447,618,787 | 809 | 788/753 | 611/585 | 488/471 |
| Scraper speed | r/min | 20,24 | 0-30 | 20,24 | 20 | ||||||
| Feeding particle size | mm | ≤0.2 | |||||||||
| Motor Power | w | 250 | 250 | 370 | 550 | 1100 | 1500 | 370/280 | 550/370 | 1500/750 | |
| Dimensions | mm | 378×406×523 | 500×500×600 | 620×530×670 | 623×590×750 | 740×600×700 | 924×804×925 | 1081×762×930 | 718×427×710 | 910×350×774 | 1047×566×86 |
| Weight | kg | 25 | 40 | 55 | 85 | 260 | 280 | 100 | 160 | 200 | |
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
