Product Details:
|
| Name: | Variable Hose Pump | Type: | XB1Ⅱ19 Type QBGⅡ Type |
|---|---|---|---|
| Model: | Variable Hose | Purpose: | Building Materials |
| Technology: | Frequency Conversion Technology | Advantage: | The Liquid Displacement Adjustment Is Stable And Precise. |
| Rotating Speed: | 17~120r/min | Displacement: | 2.2 15.5L/min |
| High Light: | 120r/min electric hose pump,15.5L/min electric hose pump,hose pump mineral processing lab equipment |
||

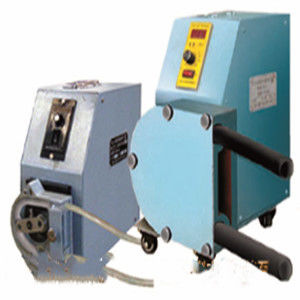

XB1Ⅱ19 type QBGⅡ type variable hose pump
Main uses and features:
XB1Ⅱ19 QBGⅡ variable hose pump is a volumetric infusion pump that does not directly contact the pump body. The pump is widely used in the laboratory concentrator of metallurgy, geology, building materials, chemical industry and other scientific research departments to transport pulp, pharmaceuticals and viscous liquid. The pump adopts frequency conversion technology, stepless speed regulation, and the liquid displacement adjustment is stable and precise.
Parameter
| Main technical parameters of XB1Ⅱ19 QBGⅡ variable hose pump | |||
| Project | Unit | XBⅡ19 variable hose pump | QBGⅡ variable hose pump |
| Rotating speed | r/min | 17~120 | 12～180 |
| Displacement | L/min | 2.2 15.5 | 0.1～1.6 |
| Head | m | 15 | 2～4 |
| Hose inner diameter | mm | Φ19×4 | Φ6,Φ9 |
| Gear motor and gearbox | Model power | 20YCJT-250w 1200rmin | 61K140RGV-CF 140W |
| Dimensions | mm | 385×249×246 | 300×146×130 |
| Weight | kg | 40 | 15 |
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
