Product Details:
|
| Name: | Electric Separator | Type: | XDF Type |
|---|---|---|---|
| Model: | High Voltage | Attributes: | Separator |
| Application: | Sorting Of Conductor Minerals And Non-conductor Minerals | Indusrty: | Food Industry |
| Drum Size: | Φ250×200mm | Drum Speed: | 50~300r/min |
| High Light: | high voltage Magnetic Separation Equipment,250mm Magnetic Separation Equipment,food industry electromagnetic drum separator |
||

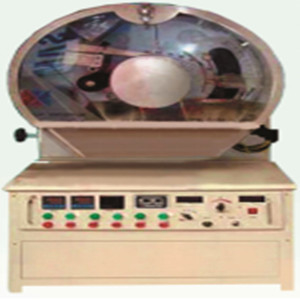

XDF type high voltage electric separator
Main uses and characteristics:
XDF type φ250×200 high-voltage electrical separator is mainly used for the separation of conductive minerals and non-conductive minerals, and can also replace the screening machine for a variety of materials, as well as for grain processing and some seed selection. at work.
Parameter
| Main technical parameters of XDF type high voltage electric separator | |||
| Serial number | Parameter item | Unit | Φ250×200 High voltage motor |
| 1 | Drum size | mm | Φ250×200 |
| 2 | Drum speed | r/min | 50~300 |
| 3 | Corona Electrode:Wire Diameter x Number | mm×root | 0.2×(1~5) |
| 4 | Static electrode: wire diameter x quantity | mm×root | Φ30×1 |
| 5 | Electrode adjustment radial movement amount | mm | 50 |
| 6 | Brush: outer diameter x core roller diameter | mm | Φ105×Φ60 |
| 7 | Brush speed | r/min | 100-600 |
| 8 | Drum heating | ℃ | 50~60 |
| 9 | Silo heating | ℃ | 100~300 |
| 10 | Silo gate opening scale | mm | 0~20 |
| 11 | Feed chute inclination | 0~30° | |
| 12 | Feed Chute Vibrator | Adjustable | |
| 13 | Handling material particle size | mm | 0.04~1 |
| 14 | Processing capacity | kg/h | 15~30 |
| 15 | Transmission power | kw | 0.25 |
| 16 | High voltage power supply | w | 800 |
| 17 | Maximum voltage | KV | 60 |
| 18 | Dimensions | mm | 920×1120×1850 |
| 19 | Weight | kg | 400 |
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
