Laboratory Sealed Vertical Roller Ball Mill With Screen 20kg/H

Name: Sealed Ball Mill Type: Sealed Ball Mill With Screen
Specification: XMQL Advantage: Low Noise
Attributes: Sealed Classification: Ball Mill
Feaature: Feed Evenly Maximum Feed Size: 1-6mm
High Light:

1mm Laboratory vertical ball mill


6mm vertical ball mill


20kg/h roller ball mill

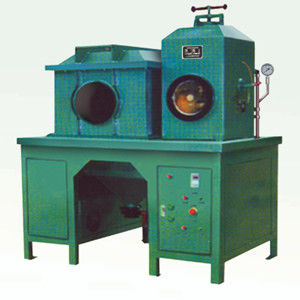

Laboratory XMQL Sealed Ball Mill with Screen


Main uses and features:

This machine is a semi-industrial type of grinding equipment, which is designed and manufactured according to the principle of Kluber type ball mill. ), the ground material passes through the discharge port in the cylinder during the operation of the mill, and then is discharged through the screen, and the material on the screen returns to the cylinder from the return port for regrinding. The machine is equipped with an electromagnetic vibrating feeder, which can feed evenly, and is sealed with a sealing cover from the feeding to the abrasive.


The main features:

It has the advantages of the same type of foreign products, the grinding operation and the screening are completed in one machine at the same time; the grinding efficiency is high, which can avoid the phenomenon of excessive grinding and insufficient grinding of the material, and the product size is uniform and granular shape. The discharge particle size can also be controlled. By selecting a screen with a certain mesh number, the discharge particle size can be controlled within a predetermined particle size range. At the same time, it has good sealing performance, and can be protected by inert gas during the grinding process to prevent material oxidation and spontaneous combustion. Compact structure and low noise. The machine has compact structure and low noise. It can be used for grinding brittle materials such as iron manganese ore, non-ferrous metal ore cement, refractory material, slag, ceramics, building materials, chemical industry and so on. It is especially suitable for the anti-oxidation process requirements of rare earth NdFeB and NiMH batteries and hydrogen storage alloy powder processing.



Main technical parameters of XMQL sealed ball mill with screen
Parameter item Unit XMQL-Φ300 XMQL-Φ600
Maximum feed size mm 1-6 1-6
Discharge port adjustment range mm 0.074 0.074
Maximum productivity kg/h 10~20 20~40
Electric motor kw 1.1 3
Dimensions mm 1170×600×1425 1700×1200×1850
Body net weight kg 900 1200
