Product Details:
|
| Name: | Vibrating Screen | Model: | XSZ600x800 Type |
|---|---|---|---|
| Specification: | Single And Double Layer | Attributes: | Mining Laboratory Machine |
| Purpose: | Screen Machine | Origin: | China |
| Application: | Metallurgy | Screen Layers: | 2Floor |
| High Light: | 600mm construction sand sieving machine,800mm construction sand sieving machine,2 Floor vibrating sand screening machine |
||

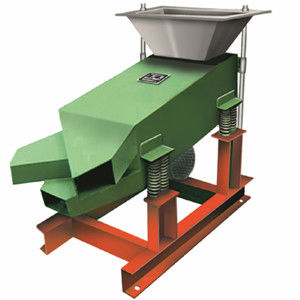

XSZ600x800 type single and double layer vibrating screen machine
Main uses and features:
This machine is suitable for screening materials in laboratories or production sites in the departments of geology, metallurgy, chemical industry, coal, etc. At the same time, the material can be divided into two or three grades. If only two grades are required to be screened, a blank screen frame can be placed at the lower part of the upper screen body to support the screen frame for single-layer use, according to the needs of use. , the four-layer screen can be replaced, and various grades of products can be screened.
The structure of the machine:
It is mainly composed of screen book, base, feeding funnel, support device, flexible feet, support spring, inclination adjustment device, material receiving barrel, tensioning device and other components.
Parameter
| Main parameters of f vibrating screen machine | ||
| Project | Unit | Parameter |
| Screen layers | Floor | 2 |
| Screen size | mm | 600×300 |
| Screen area | m² | 0.18 |
| Mesh size | mm | Φ7,Φ5 |
| Feed partical size | mm | 30 |
| Production capacity | t/h | <5 |
| Motor Power | kw | 0.55 |
| Weight | kg | 156 |
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
