Product Details:
|
| Name: | Rod Mill | Type: | Four-roll Fifty-cylinder |
|---|---|---|---|
| Purpose: | Chemical Industry | Feature: | Small In Size |
| Advantage: | Compact In Structure | Cylinder Voume: | 1L |
| Cylinder Size: | Φ85×130mm | Grinding Amount: | 75～210g |
| High Light: | 1L Laboratory Disc Mill,85mm Laboratory Disc Mill,130mm laboratory rod mill |
||

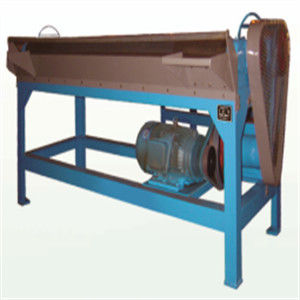

Laboratory Four-roll fifty-cylinder rod mill for Light Industry
Main uses and characteristics:
This machine can be used for grinding fine ores in metallurgy, geology, chemical industry, building materials, coal, universities, scientific research institutes, mining and mineral processing plants and other industries. There are four kinds of grinding barrels with volumes of 0.25L, 0.5L, 1.0L and 2.0L. It can grind ore at the same time with single cylinder or multiple cylinders, dry and wet, and can also use steel balls instead of steel rods as ball mills. It is compact in structure, easy to use, small in size and light in weight, and is an ideal equipment commonly used in laboratory grinding.
Parameter
| Main technical parameters of four-roll and ffty-cyinder rod mill | |||
| Parameter item | Unit | Four-roll fifty-cylinder rod mill | |
| Cylinder voume | L | 1 | 2 |
| Cylinder size | mm | Φ85×130 | Φ120×180 |
| Grinding amount | g | 75～210 | 250 ～400 |
| Feed particle size | mm | ≤2 | |
| Drive Rller Speed | r/min | 165,200 | |
| Electric motor | Y112M-6,2.2 kw | ||
| Dimensions | mm | 2125×740×980 | |
| Body net weight | kg | 320 | |
| Note: The number of buckets is determined by the user,and the price is calculated separately | |||
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
