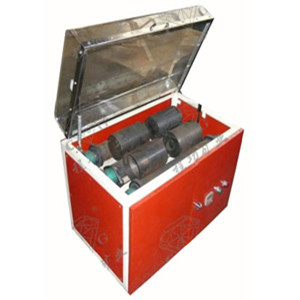

XMB 0.5L 1L Laboratory Disc Mill Three Roll Four Cylinder

I'm Online Chat Now

XMB 0.5L 1L Laboratory Disc Mill Three Roll Four Cylinder

XMB 0.5L 1L Laboratory Disc Mill Three Roll Four Cylinder
XMB 0.5L 1L Laboratory Disc Mill Three Roll Four Cylinder

Large Image :  XMB 0.5L 1L Laboratory Disc Mill Three Roll Four Cylinder

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: rod mill
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

XMB 0.5L 1L Laboratory Disc Mill Three Roll Four Cylinder

Name: Rod Mill Type: XMB Series
Model: Three-roll Four-cylinder Purpose: Metallurgy
Advantage: Compact Structure Material: Wet Materials
Usage: Single-cylinder Or Multiple-cylinder Abrasives Roller Volume: 0.5, 1.0, 2.0L
High Light:

0.5L Laboratory Disc Mill


1L Laboratory Disc Mill


0.37KW lab scale ball mill

XMB three-roll four-cylinder rod mill


Main uses and features:

XMB type three-roll four-cylinder rod mill can be used for grinding fine ores in metallurgy, geology, chemical, building materials and coal laboratories, research units and concentrators for ore selectivity research work.


Features: XMB type three-roll four-cylinder rod mill is a new type of small, light and multi-purpose grinding equipment for laboratory use. It can be used both dry and wet, and can also be used as a ball mill instead of a steel ball. This equipment has the advantages of compact structure, convenient use, small size and light weight. The ideal equipment to be used with other instruments is the finalized laboratory grinding equipment. It can be single-cylinder or multi-cylinder abrasives at the same time, so the size of sample preparation can be selected at the same time, and there are many varieties of sample preparation at the same time: it can also be used for mixing, and different simplified speeds can be selected according to different abrasives, and the frequency conversion technology press "key" It can be realized. It can make samples for wet materials at the same time. Steel balls can be used instead of steel rods as abrasive media. Simplified rotation time can be set arbitrarily. The grinding parameters are displayed on the LCD screen, which is user-friendly.



Main technical parameters of XMB three-roll four-cylinder rod mill
Project Unit Parameter
Roller volume L 0.25, 0.5, 1.0, 2.0
Maximum sample size g 50, 100, 280, 400
Feed particle size mm -0.5, -0.5, -1, -2
Product particle size mm 0.074 (-200 target)
Motor Power kw 0.37
Dimensions mm 960×560×780
Total Weight kg 290



Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
