Hanging Tank Laboratory Flotation Machine Electronics Lab Equipment For Stirring
  • name

Hanging Tank Laboratory Flotation Machine Electronics Lab Equipment For Stirring

MOQ: 1
Price: Negotiate
Standard Packaging: Standard export packing is provided, and customized packing is available upon request.
Delivery Period: 1-3 working days
Payment Method: T/T,L/C
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Y&X
Certification
Iso 9001
Model Number
hanging tank flotation machine
Name:
Hanging Tank Flotation Machine
Model:
Hanging Tank
Type:
XFGCⅡ Type
Purpose:
Building Material
Feature:
Digital Display
Advantage:
Fast Flotation Speed
Dameter Of Impeller:
Φ18、Φ24、Φ24、Φ28
Impller Speed:
0~2600r/min
Highlight:

18mm Laboratory Flotation Machine

,

24mm Laboratory Flotation Machine

,

electronics lab equipment for stirring

Product Description

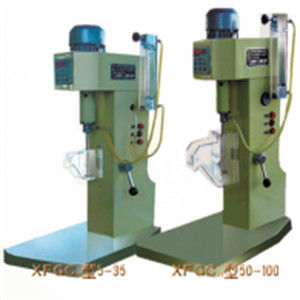

Hanging Tank Laboratory Flotation Machine Electronics Lab Equipment For Stirring
Product Overview

The XFGCⅡ hanging tank flotation machine is a versatile laboratory unit for batch flotation and stirring tests on small mineral samples. The tank assembly hangs on the machine frame and can be exchanged quickly, which makes the machine convenient when a laboratory works with many different ores in one day.

The machine is suitable for mining, metallurgy, building materials, chemical industry and other mineral processing laboratories. It is used for mixing, scrubbing, separating and selecting small amounts of mineral samples, and its impeller speed is adjustable from 0 to 2600 r/min through a digital display control, giving the operator full control of the agitation intensity during each test.

Main Uses and Characteristics
Two Test Ranges: the XFGCⅡ 5-35 model handles sample weights of 5, 15, 25 and 35 g, while the XFGCⅡ 50-100 model handles 50 and 100 g charges, covering both tracer tests and standard batch flotation.
Wide Speed Range: impeller speed from 0 to 2600 r/min allows gentle conditioning as well as high-intensity flotation agitation.
Interchangeable Impellers: impeller diameters from Φ18 mm to Φ48 mm match the cell volume in use.
Digital Display: the control panel shows the speed digitally, improving setting accuracy and test repeatability.
Fast Flotation Speed: the compact tank and impeller geometry give quick bubble generation and short test cycles.
Compact Frame: overall dimensions of 230×360×625 mm or 300×390×710 mm, with machine weights of 25 kg and 30 kg respectively.
Structure and Operation

The machine consists of a base frame, an adjustable speed drive, a hanging tank holder, the exchangeable flotation tank, impeller and scraper. In operation the ore sample is pulped in the tank, reagents are added, and the impeller both agitates the pulp and draws in air. The froth layer is scraped into the product pan until the desired concentrate is collected, after which the tailings are filtered and weighed to complete the mass balance.

Technical Parameters
Main technical parameters of XFGCII type hanging tank flotation machine
Project Unit XFGCII 5-35 XFGCII 50-100
Slot selection specification g 5,15,25,35 50,100
Slot selection volume L 20,60,100,140 200,400
Dameter of impeller mm Φ18,Φ24,Φ24,Φ28 Φ36,Φ48
Impller speed r/min 0~2600 0~2600
Feeding particle size mm 0.05～0.2 0.05～0.2
Electric motor
YS5612 90w 2800(r/min) YS5612 90w 2800(r/min)
Dimensions mm 230×360×625 300×390×710
Weight kg 25 30
Frequently Asked Questions
Q1: What sample weights can the XFGCⅡ machine test?
A: The 5-35 model tests 5, 15, 25 and 35 g charges; the 50-100 model tests 50 g and 100 g charges.
Q2: What is the feed particle size limit?
A: Feeding particle size should be in the range of 0.05 to 0.2 mm.
Q3: Which motor drives the machine?
A: The electric motor is YS5612, 90 W, 2800 r/min.
Q4: Is the flotation speed adjustable?
A: Yes, the impeller speed is adjustable from 0 to 2600 r/min with digital display.
Company Profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. The company specializes in the research and supply of mineral processing reagents and equipment, including laboratory equipment for crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation and leaching. The enterprise has passed ISO9001 quality management system certification, and its products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia, Tanzania, Nigeria and other countries and regions.

Hanging Tank Laboratory Flotation Machine Electronics Lab Equipment For Stirring

Tags:

1.5L Laboratory Flotation Machine,

73MM multi energy laboratory flotation cell,

5L laboratory flotation cell
