XFGⅡ Lab Hanging Tank Chemical Laboratory Equipment Flotation Machine
  • name

XFGⅡ Lab Hanging Tank Chemical Laboratory Equipment Flotation Machine

MOQ: 1
Price: Negotiate
Standard Packaging: Standard export packing is provided, and customized packing is available upon request.
Delivery Period: 1-3 working days
Payment Method: T/T,L/C
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Y&X
Certification
Iso 9001
Model Number
flotation machine
Name:
Flotation Machine
Model:
Hanging Tank
Type:
XFGⅡ Type
Purpose:
Geology, Metallurgy
Technology:
Frequency Conversion Technology
Advantage:
Fast Flotation Speed
Feature:
Good Selection Index
Flotation Cell Capacity:
250、500g
Highlight:

500g cell chemical laboratory equipment

,

250g chemical laboratory equipment

,

geology procesing lab flotation machine oem

Product Description

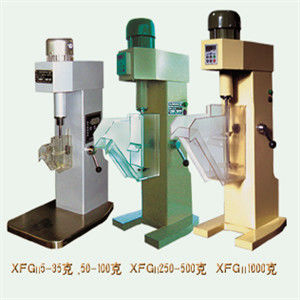

XFGⅡ Lab Hanging Tank Chemical Laboratory Equipment Flotation Machine
Product Overview

The XFGⅡ hanging tank flotation machine is a laboratory flotation unit covering a wider sample range than ordinary single-cell machines. With flotation cell capacities from 5 g up to 1000 g, the same machine body supports both small scouting tests and larger confirmatory flotation experiments, which makes it a frequent choice for chemical laboratories and mineral processing research groups that handle varied sample sizes.

It is suitable for mixing, scrubbing, separating and selecting small amounts of mineral samples in mineral processing research, and for flotation teaching and flowsheet development in geology and metallurgy laboratories. The machine applies frequency conversion technology so that the impeller speed can be set steplessly, and the fast flotation speed and good selection index help laboratories finish their test programs efficiently.

Main Uses and Features
Four Capacity Ranges: cells for 5-35 g, 50-100 g, 250-500 g and 1000 g charges cover the full laboratory test spectrum from preliminary to verification work.
Frequency Conversion Technology: the impeller speed is continuously adjustable, letting the operator match agitation intensity to the ore type and reagent system.
Fast Flotation Speed: the tank and impeller geometry generate froth quickly, shortening each test cycle.
Good Selection Index: stable pulp circulation and consistent aeration produce clean concentrates and reproducible grades.
Matched Impeller Sets: impeller diameters from Φ20 mm to Φ80 mm are provided for the different cell volumes.
Working Characteristics

The hanging tank design keeps the cell exchange simple: the operator releases the tank holder, fits the tank size required for the sample weight, and selects the matching impeller. The machine then conditions the pulp with reagents and floats the valuable minerals into the froth launder. Because the speed control is electronic, conditioning and flotation speeds can be changed during a single test, which is useful when studying the effect of agitation on recovery.

Technical Parameters
Main technical parameters of XFGⅡ type hanging tank flotation machine
Project Unit 5~35 50~100 250~500 1000
Flotation cell capacity g 5,15,25,35 50,100 250,500 1000
Flotation cell volume ml 20,60,100,140 200,400 1000,2000 4000
Diameter of impeller mm Φ20,Φ26,Φ26,Φ30 Φ36,Φ48 Φ60,Φ64 Φ80
Impeller speed r/min 0～2600 1500,2000 900,1500
Feeding particle size mm 0.05～0.2
Electric motor
YS-5612 2800(r/min) 90w A02-6324 1400r/min) 180w
Dimensions mm 300*341*648 320*300*582 200*478*698 200*498*784
Weight kg 15 16 25 20
Frequently Asked Questions
Q1: Which cell capacities are available on the XFGⅡ machine?
A: The machine covers 5-35 g, 50-100 g, 250-500 g and 1000 g flotation cell capacity ranges.
Q2: How is the impeller speed controlled?
A: Frequency conversion technology provides stepless speed adjustment, typically from 0 to 2600 r/min for the smaller cells.
Q3: What is the recommended feed particle size?
A: Feeding particle size should be between 0.05 and 0.2 mm.
Q4: Which motors are used on the different cell ranges?
A: Smaller ranges use a YS-5612 90 W motor at 2800 r/min, while the larger ranges use an A02-6324 180 W motor at 1400 r/min.
Q5: Where is the XFGⅡ commonly applied?
A: It is applied in geology and metallurgy laboratories for mixing, scrubbing and separation tests on small mineral samples, and in chemical laboratories for flotation research.
Company Profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, China. The company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force, and specializes in mineral processing reagents and laboratory equipment. Its products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia, Tanzania, Nigeria and other countries and regions.
