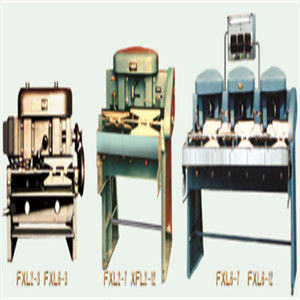

XFL Mechanical Ring Shot Continuous Froth Flotation Machine Cell

XFL Mechanical Ring Shot Continuous Froth Flotation Machine Cell
XFL Mechanical Ring Shot Continuous Froth Flotation Machine Cell

Large Image :  XFL Mechanical Ring Shot Continuous Froth Flotation Machine Cell

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: Flotation Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

XFL Mechanical Ring Shot Continuous Froth Flotation Machine Cell

Name: Flotation Machine Type: XFL
Model: Ring Shot Continuous Purpose: Coal, Chemical Industry
Slot Selection Volume: 3L Number Of Slots: 6groove
Impeller Speed: 1200、1500、1800r/min Scraper Speed: 15、18、22r/min
High Light:

3L froth flotation machine


1800r/min froth flotation machine


60mb mechanical flotation cell

XFL Ring Shot Continuous Flotation Machine


Main uses and characteristics:

This machine is suitable for continuous flotation experiments and semi-industrial production experiments on a small amount of minerals in laboratories of metallurgy, geology, coal, chemical industry, building materials and other industries.



No. Project Unit FXL6-3 FXL2-3 FXL2-7 FXL6-7 FXL2-12 FXL6-12
1 Slot selection volume L 3 3 7 7 12 12
2 Number of slots groove 6 2 2 6 2 6
3 Diamenter of impeller mm Φ60 Φ88 Φ100
4 Impeller speed r/min 1200,1500,1800 600,800,1000 600,800,1000
5 Scraper speed r/min 11.5,14.5,16.7,17.5,20.7,25 15,18,22 15,18,22
6 Feeding partical size mm ≤0.2 ≤0.2-0.4 ≤0.2-0.4
7 Motor (2 slots 1 set) JW6324 250w A06334 370w A07114 550w
8 Dimensions mm 536×460×1280(536) 536×1020(1590)×580 667×600(2000)×980
9 Weight kg 100 40 75 150 100 200


Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
