1.5L 2.5L XFDMⅡ Briquette Laboratory Flotation Machine Common Laboratory Equipment
  • name

1.5L 2.5L XFDMⅡ Briquette Laboratory Flotation Machine Common Laboratory Equipment

MOQ: 1
Price: Negotiate
Standard Packaging: Standard export packing is provided, and customized packing is available upon request.
Delivery Period: 1-3 working days
Payment Method: T/T,L/C
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Y&X
Certification
Iso 9001
Model Number
flotation machine
Name:
Laboratory Flotation Machine
Type:
XFDMⅡ
Model:
Briquette
Purpose:
Geology, Coal
Advantage:
Easy To Replace And Use
Feature:
Operation Is Stable
Slot Selection Volume:
0.75、1、1. 5、2.5L
Weight:
40kg
Highlight:

1.5L Laboratory Flotation Machine

,

2.5L Laboratory Flotation Machine

,

40KG common laboratory equipment

Product Description
1.5L 2.5L XFDMⅡ Briquette Laboratory Flotation Machine Common Laboratory Equipment
Product Overview

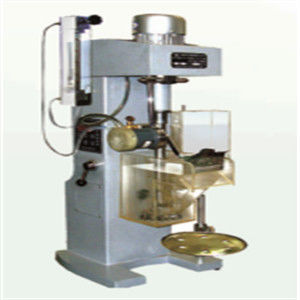

The XFDMⅡ briquette flotation machine is the standard laboratory flotation machine for coal preparation testing. It is designed around the needs of coal laboratories, where samples of 0.75 L, 1 L, 1.5 L and 2.5 L pulp volume are floated to evaluate washability, reagent performance and flotation conditions for a particular coal feed.

The machine is suitable for laboratory stirring, scrubbing, separation and selection of coal and other mineral samples. Its stable operation and easy-to-replace tank and impeller parts make it a practical tool for routine coal flotation testing as well as for research on fine coal recovery.

1.5L 2.5L XFDMⅡ Briquette Laboratory Flotation Machine Common Laboratory Equipment

Main Uses and Characteristics
Standard Coal Flotation Tool: recognized as the standard flotation machine for laboratory coal preparation, giving results that correlate with plant practice.
Four Pulp Volumes: 0.75 L, 1 L, 1.5 L and 2.5 L slot volumes allow the operator to match the cell to the sample quantity available.
Wide Impeller Speed Range: speed is adjustable from 0 to 2600 r/min for conditioning and flotation of fine coal slurries.
Two Scraper Speeds: scraper speeds of 20 and 30 r/min suit different froth removal rates.
Easy Maintenance: the tank and impeller are designed for convenient replacement, keeping downtime short in busy laboratories.
Stable Operation: the 120 W motor drive and rigid frame give smooth running during complete test series.
Working Procedure

A prepared coal slurry is placed in the cell and the impeller is started at the conditioning speed. Reagents such as collector and frother are added and mixed, after which the speed is raised for flotation. The froth carrying the combustible matter is scraped into the collection pan while the reject material remains in the cell. By weighing the floated and non-floated products, the laboratory obtains the combustible recovery and ash distribution for the tested conditions.

Technical Parameters
Main technical parameters of XFDMⅡ briquette flotation machine
No. Project Unit Parameter
1 Slot selection volume L 0.75,1,1. 5,2.5
2 Diameter of impeller mm Φ45,Φ60
3 Impeller speed r/min 0-2600
4 Scraper speed r/min 20,30
5 Feeding particle size mm <0.5
6 Electrie motor type YS-56 5622 120W
7 Dimnensions mm 500×466×1000
8 Weight kg 40
Frequently Asked Questions
Q1: What is the XFDMⅡ machine used for?
A: It is the standard laboratory machine for coal preparation flotation, used for stirring, scrubbing and separation tests on coal samples.
Q2: What cell volumes are available?
A: Slot volumes of 0.75 L, 1 L, 1.5 L and 2.5 L are available on the same machine.
Q3: What feed particle size does the machine accept?
A: The feeding particle size should be smaller than 0.5 mm.
Q4: What is the installed motor?
A: The electric motor is YS-56 5622, 120 W, providing stable operation.
Q5: What are the machine dimensions and weight?
A: Dimensions are 500×466×1000 mm and the machine weighs 40 kg.
Company Profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company specializes in the research and supply of mineral processing reagents and equipment, and its laboratory product line mainly includes crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching and analysis-electrolysis equipment. Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia, Tanzania, Nigeria and other countries and regions.
