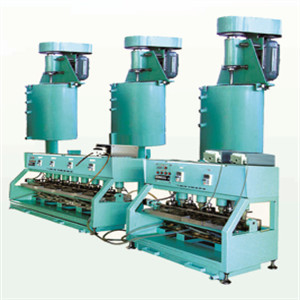

1L XFLBⅡ Mini Closed Circuit Continuous Lab Flotation Machine

I'm Online Chat Now

1L XFLBⅡ Mini Closed Circuit Continuous Lab Flotation Machine

1L XFLBⅡ Mini Closed Circuit Continuous Lab Flotation Machine
1L XFLBⅡ Mini Closed Circuit Continuous Lab Flotation Machine

Large Image :  1L XFLBⅡ Mini Closed Circuit Continuous Lab Flotation Machine

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: continuous flotation machine
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

1L XFLBⅡ Mini Closed Circuit Continuous Lab Flotation Machine

Name: Continuous Flotation Machine Type: XFLBⅡ Type
Model: Mini Closed Circuit Continuous Advantage: Accurate Adjustment
Test: Continuous Flotation Experiments Technology: Frequency Conversion Speed Regulation Technology
Single Tank Volume: 1.0 L Impeller Speed: 2000-2600rpm
High Light:

1L lab flotation machine


2000rpm lab flotation machine


2600rpm types of flotation cells

 XFLBⅡ type mini closed circuit continuous flotation machine

Main uses and characteristics:

This machine is used for continuous flotation experiments with a small amount of representative ore samples. The test results can represent the results of small closed-circuit experiments and semi-industrial experiments of a single machine in the laboratory, and can provide laboratory or semi-industrial experiments in a short period of time. Industrial beneficiation index. This machine is a self-priming continuous flotation machine with mechanical stirring, which can complete the beneficiation test of non-ferrous, ferrous and non-metallic metals.
The machine adopts gate type liquid level adjustment, which is not easy to be blocked. The mixing system adopts frequency conversion speed regulation technology, the impeller is stepless speed regulation, digital display, easy operation and accurate adjustment. The main engine is equipped with 1 set of 1 liter 8 tanks, 1 set of 1 liter 4 tanks, 1 set of 20 liter pulp mixing barrel, 2 sets of 5 liter pulp mixing barrels, 1 set of ore feeding pump, 1 set of dosing pump and 1 set of conveying pump.



Main technical parameters of closed-circuit continuous flotation machine
Project Unit Parameter
Single tank volume L 1.0
Impeller speed rpm 2000-2600
Diameter of impeller mm 60
Scraper speed rpm 0-30
Spindle motor YS5612 three 220v 2800rpm 90w
Power supply AC220v
Processing capacity kg/h 3-5
Feeding partical size mm 0.05-0.2
Main technical parameters of the pump supporting the closed-circuit continuous flotation machine
Project BT300 Feed pump BT300 Dosing pump ODM Pump
Rotating speed 0-300rpm 0-100rpm 0-110rpm
Silicone tube 18# 2.4×0.8 18#
Flow 0-1000ml/min 0-30ml/min 0-530ml/min
Power supply AC220V AC220V DC24V


Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
