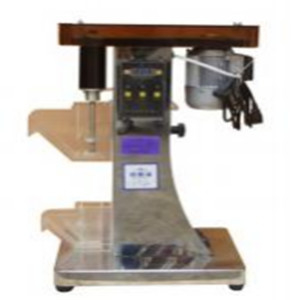

20ml XFG Laboratory Flotation Machine Hanging Trough Chemistry Lab Equipment

XFG Series Hanging Trough Flotation Machine

Introduction

The XFG type hanging tank flotation machine for laboratory is a sorting equipment used for stirring, scrubbing, separating and selecting a small amount of mineral samples in the laboratories of mineral processing enterprises and scientific research institutions such as geology, metallurgy, building materials, and chemical industry. XFG is an updated product made by our factory according to needs. It adopts all stainless steel frame, frequency conversion technology and digital display, which makes the whole machine beautiful in appearance, accurate in adjustment and convenient in use.

Technical Parameters:

Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.

FAQ

Frequently asked questions about the XFG series hanging trough flotation machine are listed below for your reference, covering capacity, speed, feed size, applications and specifications. If your question is not covered, please feel free to contact us.

Q1: What capacities are available?

A: The XFG series covers 5-1000 g capacity with 20-4000 ML trough volumes: XFG-5~35g (20-140 ML), XFG-50~100g (200-400 ML), XFG-250~500g (1000-2000 ML) and XFG-1000g (4000 ML). The capacity values are 5, 15, 25, 35, 50, 100, 250, 500 and 1000 g.

Q2: How is the impeller speed regulated?

A: The machine adopts an all stainless steel frame with frequency conversion technology and digital display. Impeller speeds are 1000~1850 r/min for XFG-5~100g models, 1500~2000 r/min for XFG-250~500g and 900~1500 r/min for XFG-1000g, with Φ20, Φ26, Φ30, Φ34, Φ36, Φ60, Φ64 and Φ80 mm impeller diameters.

Q3: What is the recommended feed size?

A: The recommended feed size is 0.05-0.2 mm for all models. Larger particles should be crushed and ground before flotation testing to ensure stable performance and accurate selection indexes.

Q4: What are the main applications?

A: Stirring, scrubbing, separating and selecting small mineral samples in geology, metallurgy, building materials and chemical industry laboratories, as well as in scientific research institutions and mineral processing enterprises, suitable for processing small amounts of mineral samples.

Q5: What are the key specifications?

A: Spindle motor YST5612 120W 2800r/min, single frequency converter GS-0.4K, flux meter LZB-3 (0.03~0.3 or 0.06~0.6 L/min), outline size 425x300x715 to 600x300x830 mm and weight 17-21.5 kg. Customized configurations and spare parts are available upon request.

For more details, spare parts or customized configurations, please contact our sales team directly. We look forward to your inquiry.
