Product Details:
|
| Name: | Intelligent Liquid Crystal Display Vibration Grinding Machine | Attributes: | Vibration Grinding Machine |
|---|---|---|---|
| Model: | Intelligent Liquid Crystal Display | Feature: | Intelligent Liquid Crystal Display |
| Characteristic: | No Dust Pollution | Advantage: | Longer Life |
| Material: | Refractory | Type: | CGZM Type |
| High Light: | 12mm Lab Ball Mill,1.1kw Lab Ball Mill,185kgvibration grinding machine |
||

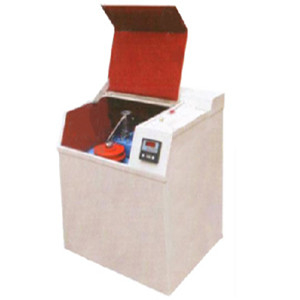

Laboratory CGZM type intelligent liquid crystal display vibration grinding machine
Main uses and features:
It is suitable for dry or wet test samples of various hardness to quickly grind to analytical fineness. Power and mining: processing coal and ores for physical or chemical analysis, grinding blast furnace slag or casting samples for analysis in the metallurgical industry, grinding sintered parts in the ceramic industry, processing coarse powders or processing clinker for refractory, porcelain, cement and building materials industries Check mineral structure; preparation of various rock material columns, Commodity Inspection Bureau checks the composition of imported and exported materials, etc.
Features:
Quick grinding with impact and friction force (usually 1-3 minutes), low noise, no dust pollution, easy to clean, grinding time and speed can be set, good grinding sealing, no loss of material samples, no foundation treatment required for installation and installation, The motor is specially manufactured and has a longer life. The LCD screen displays the grinding time and speed, and the humanized design can design the time arbitrarily and automatically stop.
Parameter
| The main technical parameters | ||||||
| parameter item | Unit | CGZM-100 | CGZM-400 | CGZM-1000 | CGZML-120 | 2CGZM-100 |
| Bowl material | Manganese steel | Manganese steel | Manganese steel | Manganese steel | Manganese steel | |
| Number of bowls | Piece | 1 | 1 | 1 | 1 | 2 |
| Loading volume | g/bowl | 150 | 350-450 | ≤1000 | 连续进出料 | 2×150 |
| Charge particle size | mm | <12 | <25 | <12 | <15 | <12 |
| Discharge particle size | target | 120-350 | 120-350 | 120-350 | 120-350 | 120-350 |
| grinding time | min | 1-3 | 2-5 | 2-5 | 1-3 | 2-5 |
| Motor Power | kw | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| Dimensions | mm | 643×565×745 | 745×743×910 | 750×750×1000 | 515×660×1060 | 550×553×825 |
| Total Weight | kg | 185 | 450 | 468 | 350 | 300 |
| parameter item | Unit | 3CGZM-100 | 5CGZM-100 | 7CGZM-100 | CGZM-50 | 3CGZM-50 |
| Bowl material | Manganese steel | Manganese steel | Manganese steel | Corundum | Corundum | |
| Number of bowls | Piece | 3 | 5 | 7 | 1 | 3 |
| Loading volume | g/bowl | 3×150 | 5×150 | 7×150 | 50 | 3×50 |
| Charge particle size | mm | <12 | <12 | <12 | <5 | <5 |
| Discharge particle size | target | 120-350 | 120-350 | 120-350 | 200-400 | 200-400 |
| grinding time | min | 2-5 | 2-5 | 3-5 | ≤30 | ≤30 |
| Motor Power | kw | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| Dimensions | mm | 550×553×825 | 815×720×912 | 815×720×912 | 501×495×643 | 550×553×825 |
| Total Weight | kg | 300 | 330 | 330 | 90 | 300 |
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
