Product Details:
|
| Name: | Cylindrical Ball Mill | Classification: | Ball Mill |
|---|---|---|---|
| Model: | Cylindrical | Purpose: | Refractory |
| Machine: | Transitional Grinding Equipment | Material: | Artificial Heavy Sand |
| Function: | Dry And Wet Dual Use | Dimension: | 1730*785*1500mm |
| High Light: | 460mm Laboratory Disc Mill,1500mm Laboratory Disc Mill,laboratory ball mill for chemical industry |
||

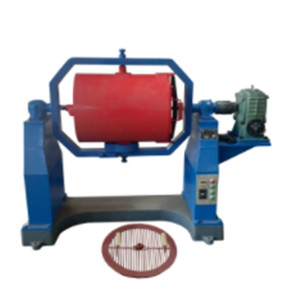

Cylindrical ball mill MQJ-Φ460
Product description
MQJ-Φ460 cylindrical ball mill is a fully enclosed dry and wet dual-purpose intermittent grinding equipment, which is used for semi-industrial laboratories or other materials (especially cement and ceramic industries) refractory materials, metallurgy, coal, light industry, chemical industry, agriculture, etc. It is a kind of transitional grinding equipment between continuous grinding and intermittent grinding, which is used for the research of ore selectivity of small industrial grinding materials. It is also a more suitable grinding equipment before artificial heavy sand separation minerals in geological experiment work.
Parameter
| Cylindrical ball mill MQJ-Φ460 | |||||||
| Name | Parameter | Unit | |||||
| Cylinder (diameter x length) | Φ460×600 | mm | |||||
| Cylinder volume | 100 | L | |||||
| Cylinder speed | 48 | R/min | |||||
| Feed particle size | ≤5 | mm | |||||
| Ore feeding amount per time | 15-30 | kg | |||||
| Processing capability | Discharge particle size | 0.83 | 0.3 | 0.21 | 0.15 | 0.074 | mm |
| mesh | 20 | 48 | 62 | 100 | 200 | target | |
| Yield | 350 | 274 | 130 | 90 | 45 | Kg/h | |
| Dimensions | 1730×785×1500 | mm | |||||
| Weight | 560 | kg | |||||
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
