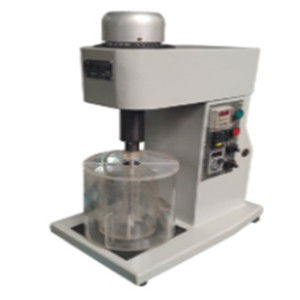

2800r/Min 120w Aerated Concentration Equipment Multifunctional Extraction Mixer XJT

I'm Online Chat Now

2800r/Min 120w Aerated Concentration Equipment Multifunctional Extraction Mixer XJT

2800r/Min 120w Aerated Concentration Equipment Multifunctional Extraction Mixer XJT
2800r/Min 120w Aerated Concentration Equipment Multifunctional Extraction Mixer XJT

Large Image :  2800r/Min 120w Aerated Concentration Equipment Multifunctional Extraction Mixer XJT

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: Multi-functionall Leaching Agitator
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

2800r/Min 120w Aerated Concentration Equipment Multifunctional Extraction Mixer XJT

Description
Name: Aerated Multifunctional Extraction Mixer Model: Multi-functionall Leaching
Clcassification: Extraction Mixer Type: XJT-Ⅱ
Purpose: Geology Industry: Mines
Technology: Frequency Conversion Technology Usage: Wet Process
High Light:

2800r/min Concentration Equipment

,

120w Concentration Equipment

,

Multifunctional Extraction Mixer ISO9001

XJT Inflatable Multi-functionall Leaching Agitator



Introduction:
XJT-Ⅱ-type gas-filled multifunctional leaching mixer can be used for wet leaching and mixing in laboratories of mines and scientific research institutions such as geology, metallurgy, building materials, chemical industry, etc. The machine adopts external inflation to simulate the actual working conditions on site. Using frequency conversion technology, the impeller speed is steplessly regulated, and the adjustment is accurate; it is equipped with a temperature controller, which can monitor the temperature of the ore liquid in the tank at any time; it is equipped with a heater to heat and control the temperature of the ore liquid.



Technical Parameters:

Item Unit Technical Date
Volume L 1.5,3.0,5
Impeller Speed r/min 0-2000
Impeller Diameter mm 32,40,48
Spindle Motor YS-5622   Three-phase220V 2800r/min 120w
Feed Size mm 0.05-0.2
Outline Dimension mm



465×300×620

Oxygen Pump   ACO-002
Weight Kg 23



Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
2800r/Min 120w Aerated Concentration Equipment Multifunctional Extraction Mixer XJT 0

FAQ
1: What's the standard length of your profiles and tube?

A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.



Q2: What's your MOQ?

A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.



Q3: what is your payment terms?

A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.



Q4: What's the lead time for small order and mass production?

A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.



Q5: What certification do you have?

A: We have ISO 9001:2008 certificate.
