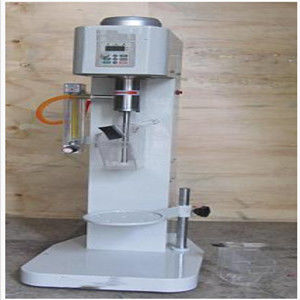

20MM XFG Mechanical Hanging Trough Laboratory Flotation Cell Machine

XFG Series Hanging Trough Flotation Machine

Introduction:
XFGⅡ series hanging tank flotation machine is a laboratory equipment for stirring, scrubbing, separating and selecting a small amount of mineral samples. . Adopt frequency conversion speed regulation and digital display technology, so that the impeller speed can be steplessly adjustable, digital display, accurate adjustment and synchronous display, which greatly improves the repeatability and accuracy of the experiment, and greatly improves the efficiency of the experiment.

Technical Parameters:

Technical Parameters

Unit

Model

XFG-5~35g

XFG-50~100g

XFG-250~500g

XFG- 1000g

Capacity

g

5

15

25

35

50

100

250

500

1000

Volume

ML

20

60

100

140

200

400

1000

2000

4000

Impeller Diameter

Mm

Φ20

Φ26

Φ26

Φ30

Φ34

Φ36

Φ60

Φ64

Φ80

Impeller Speed

r/mi n

1000~1850

1000~1850

1500~2000

900~1500

Feed Size

Mm

0.05~0.2

Spindle Motor

YST5612,120W,2800r/min

Transducer

Single Frequency Converter GS-0.4K

Outline Size

Mm

425×300×715

455×300×725

530×300×765

600×300×830

Weight

Kg

17

17

18

21.5

Flux

L/mi n

LZB-3;0.03~0.3

LZB-3;0.06~0.6

Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
