Product Details:
|
| Name: | Leaching Mixer | Type: | XJTⅡ Type L |
|---|---|---|---|
| Application: | Laboratory Wet Leaching And Mixing | Technology: | Frequency Conversion |
| Feature: | Stepless Speed Regulation | Advantage: | Accurate Adjustment |
| Temperature Control Device: | According To User Needs | Certification: | ISO9001 |
| High Light: | 1.5L laboratory flotation cell,3.5L laboratory flotation cell,2600r/min flotation cells mineral processing |
||

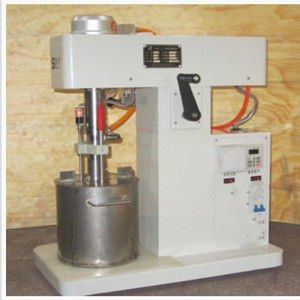

XJTⅡ type leaching mixer
Introduction
The temperature-controlled gas-filled multifunctional leaching mixer for laboratory can be used for wet leaching and mixing in laboratories of mines and scientific research institutions such as geology, metallurgy, building materials, and chemical industry.
The aerated multi-function leaching mixer XJTII is a replacement product of the XJT type. He uses an external inflatable device to simulate the scene more realistically. It also adopts frequency conversion technology, impeller stepless speed regulation, digital display, and accurate adjustment. It is also equipped with a temperature controller to display the temperature of the mineral liquid in the tank at any time. Equipped with a heater, it can heat and control the temperature of the mineral liquid.
Parameter
| Main technical parameters of leaching mixer | |||||||
| No. | Project | Unit | XJTⅡ | No. | Project | Unit | XJT |
| 1 | Slot selection volume | L | 1.5,3,5 | 1 | Slot selection volume | L | 1.5,3,5 |
| 2 | Impeller speed | r/min | 0~2600 | 2 | Impeller speed | r/min | 950,1400,1750 |
| 3 | Diameter of impeller | mm | Φ31,Φ39,Φ48 | 3 | Diameter of impeller | mm | Φ31,Φ39,Φ48 |
| 4 | motor | type | A02-5622 120W | 4 | motor | type | JW6314 180W |
| 5 | Dimensions | mm | 450×340×575 | 5 | Dimensions | mm | 304×505×633 |
| 6 | weight | kg | 20 | 6 | weight | kg | 40 |
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
