0.6kw Laboratory Rotary Kiln for Roasting and Sintering Test in Chemical Industry

MOQ: 1
Price: negotiate
Standard Packaging: Cartons
Delivery Period: 1-3 working day
Payment Method: T/T,L/C
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Y&X
Certification
ISO9001
Model Number
rotary kiln
Name:
Rotary Kiln
Purpose:
Mining Laboratory
Application:
Geology, Chemical Industry
Advantage:
Large Handling Capacity
Type:
SHY-Ⅰ/Ⅱ
Feed Particle Size:
5mm
Material:
Mine Coal
Function:
Roasting And Sintering Test
Highlight:

0.6kw Laboratory Rotary Kiln

,

material testing Laboratory Rotary Kiln

,

small rotary kiln for chemical industry

Product Description
0.6kw Material Testing Small Laboratory Rotary Kiln For Chemical Industry
Laboratory rotary kiln for roasting and sintering test of materials
Main Uses and Characteristics
  • Suitable for roasting and sintering test of materials in metallurgy, geology, mining, chemical industry, building materials and scientific research institutions
  • Continuous feed and discharge capability with large material handling capacity
  • Sealed furnace tube ends allow introduction of protective, oxidation and reduction gases during operation
  • Rotating furnace tube constantly turns samples during processing for superior quality and efficiency
  • Experimental data obtained is closer to actual production state compared to traditional muffle and tube furnaces
Technical Parameters
Parameter Item Unit Laboratory Rotary Kiln
Rated Maximum Furnace Temperature ℃ 130 (Continuously adjustable, automatic control)
Furnace Tube Speed Rev/min 0-3.3 (Stepless speed regulation)
Furnace Tube Inclination ℃ 0-10 (Adjustable)
Furnace Tube Size 92/100*1200 (Inner diameter/outer diameter*length)
Rated Furnace Power kw 24
Machine Weight kg 775
Rated Motor Power kw 0.6
Controller Weight kg 160
Company Profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical capabilities.

As a family group, our mission from the beginning has been to expand overseas markets and provide one-stop professional solutions for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipment, including mineral processing equipment and laboratory mineral processing equipment. Our products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, research departments, dressing plants, and mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing includes: crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia, Tanzania, Nigeria and other countries and regions.

The enterprise has passed the ISO9001 quality management system certification, and product quality conforms to relevant technical standards promulgated by the state and the enterprise.

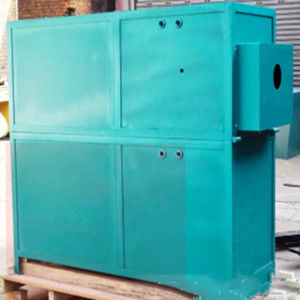

Laboratory rotary kiln equipment and company facility
Frequently Asked Questions
Q1: What's the standard length of your profiles and tube?
The standard length of profiles and tube are 5800mm to suit for small container. We can also cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.
Q2: What's your MOQ?
We have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less than USD 1000 for custom handling cost purposes.
Q3: What is your payment terms?
The payment terms we accept are T/T or irrevocable L/C at sight, with T/T preferred.
Q4: What's the lead time for small order and mass production?
1-3 working days for small orders, and 3-10 working days for mass production of material. The final lead time will be subject to each individual invoice.
Q5: What certification do you have?
We have ISO 9001:2008 certificate.
Tags:

24kw Laboratory Rotary Kiln,

2M Drum Laboratory Rotary Kiln,

metal clay kiln for chemical industry
