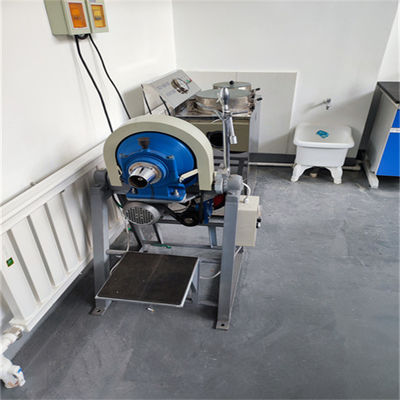

Xmq 150×100 Conical Ball Mill Laboratory Grinding

I'm Online Chat Now

Xmq 150×100 Conical Ball Mill Laboratory Grinding

Xmq 150×100 Conical Ball Mill Laboratory Grinding
Xmq 150×100 Conical Ball Mill Laboratory Grinding
Xmq 150×100 Conical Ball Mill Laboratory Grinding Xmq 150×100 Conical Ball Mill Laboratory Grinding

Large Image :  Xmq 150×100 Conical Ball Mill Laboratory Grinding

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: Conical Ball Mill
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

Xmq 150×100 Conical Ball Mill Laboratory Grinding

Name: Conical Ball Mill Model: XMQ
Purpose: Laboratory Equipment Function: Laboratory Grinding
Type: Conical Type Usage: Wet Grinding Of Fine
Material: Artificial Heavy Sand Cylinder Volume: 1L
High Light:

xmq conical ball mill


150×100 conical ball mill


conical ball laboratory grinding mill

XMQ 150×100 Laboratory Conical Ball Mill Suppliers

Main uses and characteristics

Lab cone mill for mineral pulverize is widely applied in labs for processing and fine grinding of artificial placer materials and ores in metallurgical, building material, chemical, light, coal, water conservancy, electric power, agricultural and geological industries. this ball mill is the requisite equipment for mixing, fine grinding, small sample preparing

Name XMQ 150×100 Laboratory Conical Ball Mill Suppliers
Keyword Laboratory Conical Ball Mill
Model Laboratory Ball Mill



Main technical parameters of XMQ conical ball mill
Parameter item Unit XMQ 150×50 XMQ 150×100 XMQ 240×90 XMQ 350×160
Conical barrel size mm Φ150×50 Φ150×100 Φ240×90 Φ350×160
Cylinder volume L 1 3 6.25 21.58
Grinding amount g 200 400 1000 4000
Feed particle size mm ≤3 ≤3 ≤3 ≤3
Discharge particle size mm ≤0.074 ≤0.074 ≤0.074 ≤0.074
Cylinder speed r/min 112 ± 2 112 ± 2 96 ± 2 62 ± 2
Motor Power kw 0.25 0.25 0.55 1.1
Dimensions mm 915×530 ×1160 915×750 ×1160 1050×640 ×1164 700×575 ×1190
Weight kg 90 130 170 300



Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.

Xmq 150×100 Conical Ball Mill Laboratory Grinding 0


FAQ to save your precious time!


Q1: What's the standard length of your profiles and tube?

A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.


Q2: What's your MOQ?

A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.


Q3: what is your payment terms?

A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.


Q4: What's the lead time for small order and mass production?

A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.


Q5: What certification do you have?

A: We have ISO 9001:2008 certificate.
