High Accuracy Online Density Meter with Wide Range 0.5–5 g/cm³ and HART Communication for Industrial Liquids

MOQ:	1
Price:	Negotiate
Standard Packaging:	Cartons
Delivery Period:	1-3 working day
Payment Method:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Model Number

DT501 Series

Product Name:

Online Density Meter

Model:

DT501 Series

Product Type:

Density / Concentration Transmitter

Measurement Principle:

Vibrating Element Technology

Measurement Medium:

Liquid, Slurry, Chemical Solution

Measurement Range:

0.5–5 G/cm³

Accuracy:

±0.001 G/cm³

Power Supply:

9–45 VDC

Process Temperature:

-20°C To 120°C

Ambient Temperature:

-40°C To 85°C

Maximum Pressure:

7 MPa

Communication Protocol:

Application:

Mining, Chemical, Food, Oil & Gas

OEM/ODM:

Available

Country Of Origin:

China

Product Description

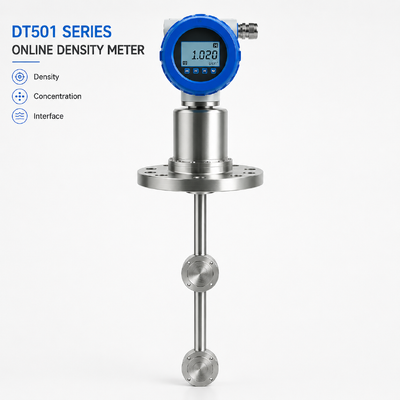

Online Density Meter for Industrial Liquid Density Measurement

Product Overview

The DT501 Series Online Density Meter is a high-precision instrument designed for continuous measurement of liquid density, concentration, and interface level in industrial process systems. Utilizing advanced vibrating element technology with automatic temperature compensation, it delivers stable, accurate, and real-time measurements for demanding applications.

Available in both industrial and sanitary versions, the DT501 can be installed directly in pipelines or tanks, making it an ideal solution for process automation, quality control, and production optimization.

Product Features

High Measurement Accuracy: Up to ± 0.001 g/cm³
Wide Density Range: 0.5-5 g/cm³
Real-Time Online Monitoring of density, concentration, and interface
Integrated Temperature Compensation for improved accuracy
Supports 4-20mA Analog Output and HART Communication for seamless integration with industrial automation systems
No Moving Parts, ensuring long-term stability and low maintenance
Industrial & Sanitary Designs available
304/316 Stainless Steel Wetted Parts
Easy Calibration without interrupting the production process

Applications

Mining & Mineral Processing
Chemical Processing
Oil & Gas
Food & Beverage
Dairy Processing
Sugar Industry
Paper & Pulp
Water & Wastewater Treatment
Petrochemical Plants

Technical Specifications

Item	Specification
Product Model	DT501 Series
Measurement Type	Density / Concentration / Interface
Density Range	0.5-5 g/cm³
Accuracy	±0.001 g/cm³
Output Signal	4-20mA + HART
Power Supply	9-45 VDC
Process Temperature	-20°C to 120°C
Ambient Temperature	-40°C to 85°C
Maximum Pressure	7 MPa (1050 PSI)
Display	LCD Digital Display
Wetted Material	304 / 316 Stainless Steel
Protection Rating	IP65
Installation	Top Mount / Side Mount

Why Choose Our Online Density Meter?

Stable Measurement Performance: The vibrating element sensor provides continuous and reliable measurements with excellent long-term stability.
Easy System Integration: Supports standard 4-20mA analog output and HART protocol, making integration with automation systems quick and simple.
Low Maintenance Cost: With no moving mechanical parts, the sensor requires minimal maintenance while delivering long service life.
Customizable Solutions: Probe length, installation method, process connection, wetted material, and output configuration can all be customized according to customer requirements.
Wide Industrial Applications: Suitable for monitoring slurry, chemicals, food liquids, lubricants, acids, alkalis, and many other industrial fluids.

Frequently Asked Questions

What is an online density meter?
An online density meter continuously measures the density, concentration, or interface of liquids in pipelines or tanks, providing real-time data for process control.

Does the DT501 support HART communication?
Yes. The instrument provides both 4-20mA analog output and HART digital communication for seamless integration with industrial automation systems.

Can it measure slurry?
Yes. The DT501 is suitable for slurry density monitoring in mining and mineral processing plants.

What materials are available?
Standard wetted parts are 304 and 316 stainless steel. Other materials are available upon request.

Is customization available?
Yes. We provide OEM & ODM services including probe length, flange type, process connection, measuring range, output signal, and sanitary configurations.

Is field calibration supported?
Yes. The instrument supports on-site calibration without interrupting production, reducing downtime and maintenance costs.

How can I choose the right model?
Simply provide your application details, including liquid type, density range, temperature, pressure, and installation requirements. Our engineers will recommend the most suitable configuration.

Why Choose Y&X Beijing Technology?

Y&X Beijing Technology Co., Ltd. specializes in industrial process instrumentation and laboratory solutions for customers worldwide. We provide:

Professional engineering support
Customized instrument solutions
Fast global delivery
OEM & ODM manufacturing
Comprehensive after-sales service

Our experienced technical team is committed to helping customers improve process efficiency, product quality, and operational reliability.

Looking for a reliable Online Density Meter?

Our engineers are ready to help you select the best solution for your application.
