TP655 Petroleum Density Tester with Touch Screen and Temperature Control
  • name
  • name
  • name

TP655 Petroleum Density Tester with Touch Screen and Temperature Control

MOQ: 1
Price: Negotiate
Standard Packaging: Cartons
Delivery Period: 1-3 working day
Payment Method: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Y&X
Model Number
TP655
Model Number:
TP655
Product Name:
Petroleum Density Tester
Display:
5 Inch Color Touch LCD
Temperature Control:
PI Control
Temperature Range:
0-100℃
Temperature Accuracy:
±0.1℃
Test Holes:
2
Stirring Speed:
1200±12 Rpm
Power Supply:
220V 50Hz
Heating Power:
≤1500W
Power Consumption:
≤1800W
Dimension:
400×370×615mm
Weight:
23KG
Highlight:

petroleum density tester with touch screen

,

petroleum density tester with temperature control

,

mineral testing machine for petroleum density

Product Description
TP655 Petroleum Density Tester with Touch Screen and Temperature Control
Product Overview
TP655 Petroleum Density Tester is a professional laboratory instrument designed for measuring the density of crude oil, petroleum products, and petroleum/non-petroleum mixtures with Reid vapor pressure not exceeding 180 kPa. The instrument can accurately measure the density of transparent, low-viscosity liquids and is also suitable for viscous liquids. It is widely used in petroleum, chemical, and electric power industries, research institutes, and laboratory testing departments.
Based on GB/T 1884-2000 standard testing conditions, the instrument uses a constant-temperature water bath system to maintain the sample at the required temperature, ensuring accurate density measurement results.

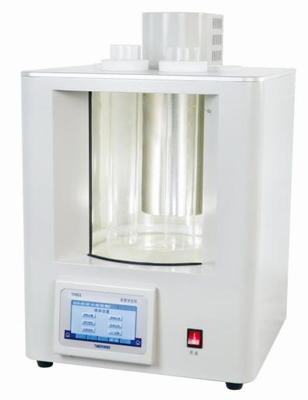

TP655 Petroleum Density Tester laboratory instrument
Product Description
The TP655 Petroleum Density Tester is designed for laboratory determination of petroleum product density using a hydrometer method under controlled temperature conditions. During operation, the sample is placed into a density measuring cylinder and heated in a water bath to the specified temperature. After thermal equilibrium is reached, the petroleum density meter is inserted into the sample. The density value is obtained by reading the hydrometer scale together with the sample temperature.
The instrument adopts microcomputer control technology, integrated temperature control, automatic stirring system, and illumination design, providing stable temperature conditions, convenient operation, and reliable test results.
Key Features
  • 5 Inch Touch Screen Operation: Equipped with a 5-inch color touch LCD display with Chinese human-machine interface for easy operation and parameter setting
  • Precise Temperature Control: PI temperature control technology with high temperature accuracy, short heating time, and temperature control accuracy of ±0.1℃
  • Automatic Stirring System: Built-in microcomputer control system with automatic stirring paddle operation to ensure uniform sample temperature
  • Clear Sample Observation: Built-in LED lighting system providing soft and stable illumination for improved sample visibility during testing
  • Wide Temperature Range: Temperature range from 0-100℃, suitable for density measurement below or above ambient temperature with optional cooling device available for testing below 20℃
  • Safe and User-Friendly Design: Reasonable structure design with simple operation and reliable laboratory performance
TP655 Petroleum Density Tester key features and operation
Working Principle
The TP655 Petroleum Density Tester works according to the hydrometer measurement method specified in GB/T 1884-2000. The petroleum sample is placed into the density cylinder and heated in a controlled water bath until reaching the required test temperature (normally 20℃ under atmospheric pressure of 101.325 kPa). After the sample temperature becomes stable, a suitable petroleum hydrometer is placed into the sample. When the hydrometer floats freely and reaches equilibrium, the density value is obtained by reading the hydrometer scale and recording the sample temperature.
Applications
TP655 Petroleum Density Tester is widely applied in:
  • Petroleum Industry: Crude oil density testing, petroleum product quality inspection, fuel oil laboratory analysis
  • Chemical Industry: Chemical liquid density measurement, raw material inspection
  • Power Industry: Oil quality analysis, transformer oil related testing applications
  • Research Institutions: Laboratory research, scientific experiments, quality control testing
TP655 Petroleum Density Tester applications and industries
Technical Specifications
Item Specification
Product Model TP655
Product Name Petroleum Density Tester
Display 5 inch color touch LCD
Control Method PI temperature control
Temperature Range 0-100℃
Temperature Accuracy ±0.1℃
Temperature Resolution 0.01℃
Test Positions 2 holes
Stirring Speed 1200 ±12 rpm
Ambient Temperature 5-40℃
Ambient Humidity ≤80%
Power Supply 220V ±10%, 50Hz ±10%
Heating Power ≤1500W
Total Power Consumption ≤1800W
Dimensions 400 × 370 × 615 mm
Net Weight 23 kg
Standard Accessories
The standard package includes:
  • Density Measuring Cylinder
  • Petroleum Hydrometer
  • User Manual
Optional accessories:
  • Immersion Cooling Device
Advantages
  • Accurate Temperature Control: Advanced PI temperature control technology provides stable testing conditions and improves measurement accuracy
  • Easy Operation: Touch screen interface and automatic control system simplify laboratory testing procedures
  • Wide Application Range: Suitable for crude oil, petroleum products, transparent liquids, and viscous liquid density testing
  • Reliable Laboratory Performance: Designed for petroleum laboratories, research institutes, and industrial quality control applications
Frequently Asked Questions
Q1: What samples can TP655 Petroleum Density Tester measure?
TP655 can measure crude oil, petroleum products, petroleum/non-petroleum mixtures, transparent low-viscosity liquids, and viscous liquids.
Q2: What is the temperature control accuracy?
The temperature control accuracy is ±0.1℃ with a resolution of 0.01℃.
Q3: Can it test samples below room temperature?
Yes. The instrument can perform density testing below ambient temperature with an optional cooling device.
Q4: What standard does this instrument follow?
The instrument follows the testing conditions specified in GB/T 1884-2000.
Q5: What industries use this equipment?
It is widely used in petroleum, chemical, electric power industries, research institutes, and laboratories.
Tags:

Mineral Testing Machine,

AAS Mineral Testing Machine,

High Frequency infrared sulfur analyzer
