TP655 Automatic Petroleum Density Tester Laboratory Oil Density Measurement Instrument
  • name
  • name
  • name

TP655 Automatic Petroleum Density Tester Laboratory Oil Density Measurement Instrument

MOQ: 1
Price: Negotiate
Standard Packaging: Cartons
Delivery Period: 1-3 working day
Payment Method: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Y&X
Model Number
TP655
Model Number:
TP655
Product Name:
Petroleum Density Tester
Display:
5 Inch Color Touch LCD
Temperature Control:
PI Control
Temperature Range:
0-100℃
Temperature Accuracy:
±0.1℃
Test Holes:
2
Stirring Speed:
1200±12 Rpm
Power Supply:
220V 50Hz
Heating Power:
≤1500W
Power Consumption:
≤1800W
Dimension:
400×370×615mm
Weight:
23KG
Highlight:

automatic petroleum density tester

,

laboratory oil density instrument

,

petroleum density measurement machine

Product Description
TP655 Automatic Petroleum Density Tester
Professional laboratory instrument for measuring density of crude oil, petroleum products, and petroleum/non-petroleum mixtures with Reid vapor pressure not exceeding 180 kPa.
Product Overview
The TP655 Petroleum Density Tester accurately measures density of transparent, low-viscosity liquids and is also suitable for viscous liquids. Widely used in petroleum, chemical, and power industries, research institutes, and laboratory testing departments.
Based on GB/T 1884-2000 standard testing conditions, the instrument uses a constant-temperature water bath system to maintain samples at required temperature, ensuring accurate density measurement results.

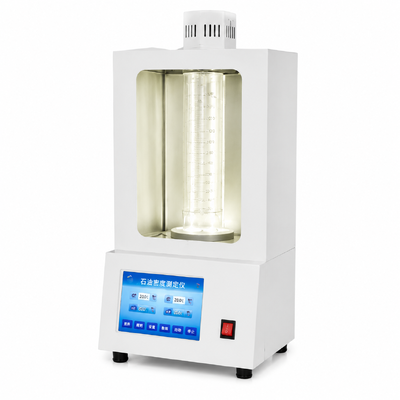

TP655 Petroleum Density Tester laboratory instrument
Measurement Principle
The TP655 operates using the hydrometer measurement method specified in GB/T 1884-2000. Samples are placed in density cylinders and heated in a controlled water bath to the required test temperature. After thermal equilibrium, a petroleum hydrometer is inserted and density values are read from the hydrometer scale along with sample temperature.
Key Features
  • 5-Inch Touch Screen: Color touch LCD display with Chinese human-machine interface for easy operation and parameter setting
  • Precise Temperature Control: PI temperature control technology with ±0.1℃ accuracy and short heating time
  • Automatic Stirring System: Built-in microcomputer control with automatic stirring paddle for uniform sample temperature
  • Clear Sample Observation: Built-in LED lighting system providing soft, stable illumination for improved visibility
  • Wide Temperature Range: 0-100℃ range suitable for density measurement below or above ambient temperature
  • Safe & User-Friendly: Reasonable structure design with simple operation and reliable laboratory performance
TP655 Petroleum Density Tester features and display
Applications
  • Petroleum Industry: Crude oil density testing, petroleum product quality inspection, fuel oil laboratory analysis
  • Chemical Industry: Chemical liquid density measurement, raw material inspection
  • Power Industry: Oil quality analysis, transformer oil related testing applications
  • Research Institutions: Laboratory research, scientific experiments, quality control testing
TP655 Petroleum Density Tester applications and usage
Technical Specifications
Item Specification
Product Model TP655
Product Name Petroleum Density Tester
Display 5 inch color touch LCD
Control Method PI temperature control
Temperature Range 0-100℃
Temperature Accuracy ±0.1℃
Temperature Resolution 0.01℃
Test Positions 2 holes
Stirring Speed 1200 ±12 rpm
Ambient Temperature 5-40℃
Ambient Humidity ≤80%
Power Supply 220V ±10%, 50Hz ±10%
Heating Power ≤1500W
Total Power Consumption ≤1800W
Dimensions 400 × 370 × 615 mm
Net Weight 23 kg
Standard Accessories
  • Density Measuring Cylinder
  • Petroleum Hydrometer
  • User Manual
Optional accessories: Immersion Cooling Device
Product Advantages
  • Accurate Temperature Control: Advanced PI temperature control technology provides stable testing conditions and improves measurement accuracy
  • Easy Operation: Touch screen interface and automatic control system simplify laboratory testing procedures
  • Wide Application Range: Suitable for crude oil, petroleum products, transparent liquids, and viscous liquid density testing
  • Reliable Laboratory Performance: Designed for petroleum laboratories, research institutes, and industrial quality control applications
Frequently Asked Questions
What samples can TP655 Petroleum Density Tester measure?
TP655 can measure crude oil, petroleum products, petroleum/non-petroleum mixtures, transparent low-viscosity liquids, and viscous liquids.
What is the temperature control accuracy?
The temperature control accuracy is ±0.1℃ with a resolution of 0.01℃.
Can it test samples below room temperature?
Yes. The instrument can perform density testing below ambient temperature with an optional cooling device.
What standard does this instrument follow?
The instrument follows the testing conditions specified in GB/T 1884-2000.
What industries use this equipment?
It is widely used in petroleum, chemical, electric power industries, research institutes, and laboratories.
