TP755 Automatic Liquid Density Meter with Vibrating Tube Technology for Petroleum and Chemical Testing
  • name
  • name
  • name

TP755 Automatic Liquid Density Meter with Vibrating Tube Technology for Petroleum and Chemical Testing

MOQ: 1
Price: Negotiate
Standard Packaging: Cartons
Delivery Period: 1-3 working day
Payment Method: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Y&X
Model Number
TP755
Model Number:
TP755
Product Name:
Automatic Liquid Density Meter
Testing Method:
Vibrating Tube Density Sensor
Sampling Type:
Automatic / Manual
Data Storage:
80 Groups
Power Supply:
AC220V 50Hz
Dimension:
265×210×205mm
Weight:
3.4kg
Highlight:

TP755 automatic liquid density meter

,

vibrating tube density meter

,

petroleum testing density meter

Product Description
TP755 Automatic Liquid Density Meter
TP755 Automatic Liquid Density Meter is designed for measuring the density of various liquid samples based on vibrating tube density sensor technology. The instrument complies with multiple industry testing methods.
Compliant Standards
  • NB/SH/T 0870-2013 - Determination of kinematic viscosity and density of petroleum products by Stabinger viscometer method
  • DB13/T 1231-2010 - Density measurement method of chemical products using intelligent liquid density meter
  • SH/T0604-2000 - Density determination of crude oil and petroleum products by U-tube oscillation method
With high sensitivity, fast response and simple operation, TP755 is suitable for density measurement applications in petroleum, chemical, pharmaceutical, food & beverage processing industries, quality supervision systems and university laboratories.

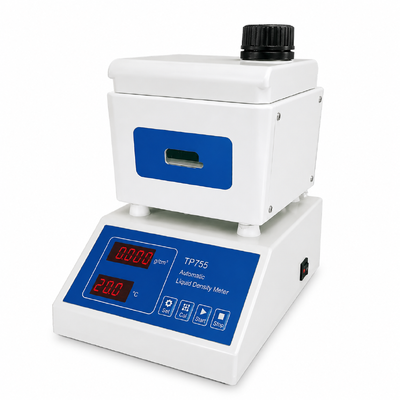

TP755 Automatic Liquid Density Meter instrument display
Working Principle
The TP755 automatic liquid density meter uses a vibrating tube density sensor principle. During testing, the liquid sample is automatically pumped into the oscillating tube sensor. The built-in microprocessor collects vibration signals, processes measurement data and directly calculates the liquid density value.
Measurement Benefits
  • Fast measurement speed
  • High sensitivity
  • Small sample consumption
  • Reliable testing performance
TP755 Automatic Liquid Density Meter internal mechanism diagram
Key Features
Stable Temperature Control
Equipped with a double-chamber constant temperature system, the instrument maintains the testing temperature at 20℃ ± 0.1℃ ensuring accurate density measurement results.
Automatic Sampling System
The automatic sampling function improves testing efficiency and reduces manual operation workload.
Direct Density and Temperature Display
The instrument displays liquid density value and testing temperature directly on the screen for convenient operation.
Acid and Alkali Resistant Pipeline
The liquid-contact pipelines are made of imported acid and alkali resistant materials, allowing measurement of acidic and alkaline liquid samples.
Low Sample Consumption
Only 2 ml sample volume is required for each measurement, reducing sample waste.
Calibration Function
The instrument supports calibration using pure water to correct measurement deviation after long-term storage or non-use.
Data Storage
The system can store up to 80 groups of measurement data for convenient review and management.
Technical Specifications
Item Specification
Model TP755
Product Type Automatic Liquid Density Meter
Measurement Principle Vibrating Tube Density Sensor
Density Range 0-1999.9 kg/m³
Alcohol Measurement Range 0-100%
Measurement Accuracy ±0.5 kg/m³ (±0.0005 g/cm³)
Temperature Control 20℃ ±0.1℃
Sample Volume 2 ml/time
Sampling Mode Automatic Sampling / Manual Sampling
Data Storage 80 Groups
Ambient Temperature 5℃-40℃
Power Supply AC220V ±10%, 50Hz ±10%
Dimensions 265 × 210 × 205 mm
Net Weight 3.4 kg
Application Fields
Petroleum Industry
Used for density measurement of crude oil, petroleum products, and fuel oils.
Chemical Industry
Suitable for chemical liquid analysis, raw material inspection, and production quality control.
Pharmaceutical Industry
Used for liquid formulation testing and laboratory quality analysis.
Food & Beverage Industry
Applicable for beverage density measurement and alcohol concentration testing.
Research & Inspection Laboratories
Suitable for universities, research institutes, and quality supervision organizations.
Optional Accessories
Available pipeline options include acid and alkali resistant inlet/outlet tube and standard inlet/outlet tube.
Why Choose TP755 Automatic Liquid Density Meter?
  • High Accuracy Density Measurement
  • Automatic Sampling for Easy Operation
  • Stable Temperature Control at 20℃±0.1℃
  • Low Sample Consumption of Only 2ml
  • Suitable for Petroleum and Chemical Applications
  • Compact Design for Laboratory Use
Frequently Asked Questions
Q1: What liquids can TP755 measure?
TP755 can measure various liquid samples, including petroleum products, chemical liquids, pharmaceutical liquids and food & beverage liquids.
Q2: What is the sample volume required?
Only 2 ml sample volume is required for each measurement, helping reduce sample consumption.
Q3: Does TP755 support acidic or alkaline liquid testing?
Yes. When measuring acidic or alkaline solutions, the acid and alkali resistant pipeline should be selected.
Q4: How is the instrument calibrated?
Pure water can be used as the calibration standard. Before calibration, ensure the sample cell is clean and free of air bubbles.
Q5: What temperature does the instrument control?
The constant temperature system maintains 20℃ ±0.1℃ for stable measurement conditions.
