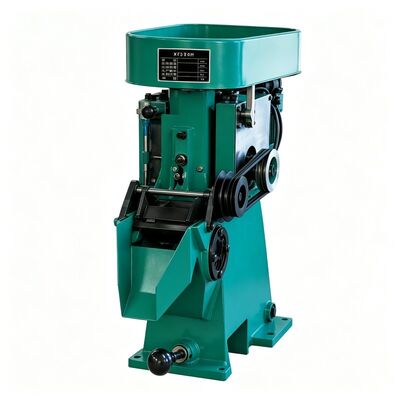

3-8L Single Tank Laboratory Flotation Machine

XFD type, XFD II type, XFD IV single tank flotation machine

Main uses and characteristics:

XFDII type, XFDI IV type single-cell flotation machine, suitable for mining, metallurgy, building materials, chemical industry and other mining processing plants and scientific research departments and colleges and universities mineral processing laboratories for stirring, scrubbing, separation and selection of small amounts Mine samples, etc. The machine adopts frequency conversion technology, impeller stepless speed regulation, and digital display. It adopts external inflation device, central inflation, adjustable inflation volume, convenient adjustment, accurate and stable, and has the characteristics of fast flotation speed and good selection index. In order to meet various flotation requirements, it is equipped with an inflation valve, and the inflation method is selected according to the needs.

Parameter

Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.

FAQ

Here are the frequently asked questions about the XFD series single tank laboratory flotation machine. If you need further information about the equipment or customization, please feel free to contact us.

Q1: What flotation cell volumes are available for the single tank flotation machine?

A: The machine is available in 3.0 L, 8.0 L and 12 L flotation cell volumes covering the XFD, XFD II and XFD IV series, so you can select the tank size according to your sample processing requirements. The corresponding impeller diameters are Φ70, Φ100 and Φ130 mm, and the machine weight ranges from 38 kg to 76 kg depending on the model.

Q2: How is the impeller speed regulated?

A: The machine adopts frequency conversion technology with impeller stepless speed regulation and digital display. The XFD II and XFD IV models offer 0-2600 r/min, while the XFD model provides 1544, 1708 and 1890 r/min, allowing precise speed control for different ore types and flotation conditions. The spindle motor options include JW6324 250 W at 1410 r/min and Y2-1274 370 W at 1340 r/min with 220 V power supply, and the scraper motor is 302A with 0-30 r/min.

Q3: What is the feeding particle size?

A: The recommended feeding particle size is 0.05-0.2 mm, which ensures stable flotation performance and accurate selection indexes for small amounts of mine samples. Materials larger than 0.2 mm should be crushed and ground before flotation testing.

Q4: What are the main applications of this flotation machine?

A: It is widely used for stirring, scrubbing, separation and selection of small amounts of mine samples in mining, metallurgy, building materials and chemical industry plants, as well as in mineral processing laboratories of scientific research departments and colleges and universities. It is also suitable for flotation reagent testing, process development and small-scale batch flotation studies, and the XFD IV model can be equipped with a 250 W heater configured according to user needs.

Q5: How does the aeration system work?

A: The machine is equipped with an external inflation device with central inflation. The inflation volume is adjustable through an inflation valve, allowing the inflation method to be selected according to different flotation requirements. This ensures accurate and stable operation with fast flotation speed and good selection index.

For more details about the XFD series single tank flotation machine, spare parts or customized configurations, please contact our sales team. Y&X Beijing Technology Co., Ltd. provides one-stop professional solutions for overseas mining companies, with products exported worldwide.
