5000cc Laboratory Grinding Mill for Mining Sample Preparation
  • name
  • name

5000cc Laboratory Grinding Mill for Mining Sample Preparation

MOQ: 1 Set
Price: Negotiate
Standard Packaging: Standard export packing, or customized packing as your request
Delivery Period: 15-30 working days
Payment Method: L/C,T/T
Supply Capacity: Standard and custom production available
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Y&X
Certification
ISO9001
Model Number
Laboratory Grinding Mill
Target Fineness:
75μm
Maximum Feed Size:
≤20mm
Clamping System:
Pneumatic
Motor Power:
4kW
Bowl Material:
Carbon Steel / Optional Chrome Steel
Application:
Mining And Mineral Sample Preparation
Highlight:

5000cc laboratory grinding mill

,

mining sample preparation grinder

,

laboratory grinding mill 5000cc

Product Description
5000cc Laboratory Grinding Mill for Mining Sample Preparation

The laboratory grinding mill is engineered for high-capacity sample preparation in mining, mineral exploration, geology, and metallurgical laboratories. Equipped with a 5000cc grinding bowl and a powerful 4kW motor, this laboratory pulverizer is well suited to processing larger batches of mineral and ore samples for laboratory testing and analysis.

Its pneumatic bowl clamping system and standard pneumatic bowl lifting assistant simplify bowl handling, reduce manual lifting effort, and support safer daily operation. The enclosed grinding chamber helps minimize sample loss and dust escape during pulverization.

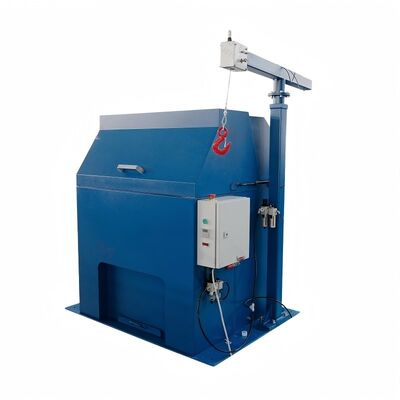

5000cc laboratory grinding mill with pneumatic bowl clamping system for mining sample preparation
Front view of 5000cc laboratory pulverizer showing external control panel and front-opening access door
Key Features and Benefits
High-Capacity Grinding for Mineral Samples
  • 5000cc grinding bowl: Accommodates larger sample batches for routine laboratory sample preparation.
  • 4kW motor: Delivers powerful drive performance for demanding grinding applications.
  • Efficient sample pulverization: Designed to prepare mineral and ore samples for subsequent laboratory analysis.
  • Adjustable grinding time: An external control panel allows users to set grinding cycles according to sample characteristics and target fineness.
Pneumatic Clamping and Easier Bowl Handling
  • Pneumatic bowl clamping: Secures the grinding bowl firmly during operation.
  • Standard bowl lifting assistant: Reduces manual handling effort when lifting and positioning the grinding bowl.
  • Safety interlock: A time-delay cover locking mechanism helps prevent unsafe access during operation.
  • Enclosed grinding system: Helps control dust and reduce sample loss during pulverization.
Durable Design and Convenient Maintenance
  • Isolated motor design: A universal drive shaft transmits power while helping protect the motor from direct vibration.
  • Front-opening access door: Simplifies routine inspection, cleaning, and maintenance.
  • Forklift-accessible grinding unit: Facilitates handling during installation and servicing.
  • External control panel: Supports convenient adjustment of grinding cycles.
Technical Specifications
Parameter Specification
Equipment type Laboratory Grinding Mill / Pulverizer
Grinding bowl capacity 5000cc
Motor power 4kW
Power supply 380V / 50Hz / Three-phase
Maximum feed size ≤20mm
Target fineness 90–95% passing 75μm, subject to sample and test conditions
Grinding time Depends on material properties and target fineness
Timer range 1 second to 60 hours
Clamping system Pneumatic
Compressed air requirement 500–600kPa
Standard bowl material Carbon steel (Optional bowl material: Chrome steel)
Overall dimensions (L × D × H) 1340 × 1310 × 1730mm, including bowl lifting assistant
Packing dimensions (L × D × H) 1480 × 1320 × 1640mm
Net weight 700kg
Gross weight 750kg
Applications

The laboratory pulverizer is suitable for sample preparation in:

  • Mining and mineral processing laboratories
  • Geological exploration and ore testing
  • Metallurgical laboratories
  • Cement and building materials testing
  • Chemical and environmental laboratories
  • Ceramic and aggregate testing

It is particularly suitable for laboratories that need to process larger sample batches before mineral analysis, assay testing, or other laboratory procedures.

Request a Quote for Your Sample Preparation Requirements

Looking for a high-capacity laboratory grinding mill for ore and mineral samples?

Contact Y&X to discuss your sample type, required batch capacity, feed size, target fineness, and preferred grinding bowl material. Our team can help you identify a suitable configuration for your laboratory sample preparation process.
