Laboratory Grinding Mill with Pneumatic Bowl Lifting System

MOQ:	1 Set
Price:	Negotiate
Standard Packaging:	Standard export packing, or customized packing as your request
Delivery Period:	15-30 working days
Payment Method:	L/C,T/T
Supply Capacity:	Standard and custom production available

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

ISO9001

Model Number

Laboratory Grinding Mill

Target Fineness:

Maximum Feed Size:

≤20mm

Clamping System:

Pneumatic

Motor Power:

Bowl Material:

Carbon Steel / Optional Chrome Steel

Application:

Mining And Mineral Sample Preparation

Highlight:

Laboratory grinding mill pneumatic lifting

Pneumatic bowl lifting grinding mill

Laboratory mill pneumatic bowl system

Product Description

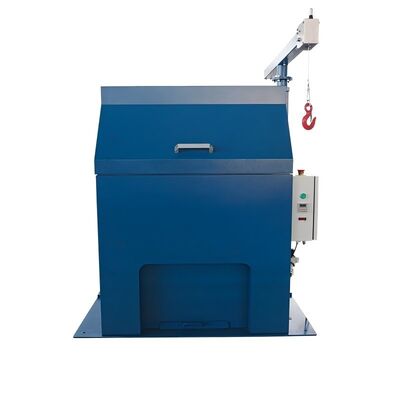

Laboratory Grinding Mill with Pneumatic Bowl Lifting System

The laboratory grinding mill is engineered for mining, geological, and metallurgical laboratories. Its pneumatic bowl lifting assistant and pneumatic clamping system simplify grinding bowl handling, reduce manual lifting effort, and support safer daily operation. Equipped with a 5000cc grinding bowl and a 4kW motor, this laboratory pulverizer is well suited to preparing ore and mineral samples for laboratory analysis.

Key Features

Pneumatic Bowl Lifting

The standard bowl lifting assistant helps operators lift and position the grinding bowl with less manual effort, improving handling convenience during routine sample preparation.
Secure Pneumatic Clamping

The pneumatic clamping system securely holds the grinding bowl during operation. A compressed air supply of 500-600kPa is required.
Safety-Focused Design

A cover locking interlock with a time-delay function helps prevent unsafe access during operation. The enclosed grinding chamber helps control dust and minimize sample loss.
Reliable Performance and Easy Maintenance

The 4kW motor supports routine mineral sample pulverization. A front-opening access door simplifies inspection and cleaning, while the isolated motor design helps protect the motor from direct vibration.

Technical Specifications

Grinding Bowl Capacity	5000cc
Motor Power	4kW
Maximum Feed Size	≤20mm
Clamping System	Pneumatic
Bowl Lifting Assistant	Standard
Compressed Air Requirement	500-600kPa
Target Fineness	90-95% passing 75μm, subject to sample conditions
Power Supply	380V / 50Hz / Three-phase
Bowl Material	Carbon Steel / Optional Chrome Steel

Applications

Mining laboratories
Mineral processing plants
Geological exploration
Metallurgical testing facilities

Request a Quote

Looking for a laboratory grinding mill with pneumatic bowl lifting? Contact Y&X with your sample type, batch capacity, and target fineness to discuss a suitable configuration.
