Electromagnetic Laboratory Sieve Shaker 200mm Fine Powder Dispersion 221 r/min
  • name
  • name

Electromagnetic Laboratory Sieve Shaker 200mm Fine Powder Dispersion 221 r/min

MOQ: 1 Set
Price: Negotiate
Standard Packaging: Standard export packing, or customized packing as your request
Delivery Period: 15-30 working days
Payment Method: L/C,T/T
Supply Capacity: Standard and custom production available
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Y&X
Certification
ISO9001
Model Number
3D Electromagnetic Type - Phi 200mm
Drive Type:
3D Electromagnetic Vibration
Sieve Diameter:
Phi 200 Mm
Agitation Frequency:
221 Times/min
Vibration Frequency:
149 Times/min
Rotation Radius:
12.5 Mm
Amplitude:
5 Mm
Motor:
3-phase, 380 V, 0.37 KW
Weight:
160 Kg
Overall Dimensions:
660 X 450 X 1060 Mm
Main Application:
Fine Powder Dispersion And Particle Size Analysis
Highlight:

Electromagnetic Sieve Shaker 200mm

,

Fine Powder Dispersion Sieve Shaker

,

221 r/min Vibrating Screen Machine

Product Description
3D Electromagnetic Laboratory Sieve Shaker for Fine Powder Dispersion

This 3D electromagnetic vibratory sieve shaker is built for laboratories that need reliable particle size analysis of fine powders and cohesive samples. A three-dimensional electromagnetic drive moves the sample across the sieve surface in vertical, horizontal and rotational directions, so fine particles stay dispersed instead of clustering on the mesh.

Where a 2D mechanical shaker relies on a motor-driven eccentric mechanism, the electromagnetic drive removes belts, pulleys and mechanical wear parts from the vibration path. The result is a compact benchtop unit with repeatable sieving action and simple, low-maintenance operation.

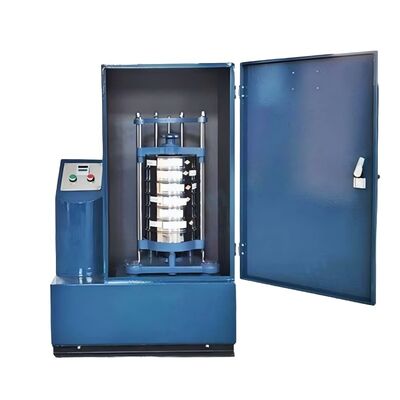

3D electromagnetic laboratory sieve shaker with 200 mm sieve stack for fine powder particle size analysis
Why Choose the 3D Electromagnetic Type
  • Three-dimensional sample motion improves dispersion of fine and cohesive powders
  • Electromagnetic drive without belt or pulley transmission in the vibration path
  • Accepts standard 200 mm test sieves for stacked particle size analysis
  • 221 r/min agitation with 5 mm amplitude for consistent sieving results
  • Benchtop footprint suited to laboratories with limited bench space
  • Simple operation for routine incoming, in-process and final product testing
Typical Applications
  • Pharmaceutical powders and excipients grading
  • Chemical powders, catalysts and pigments
  • Mineral, ore and geological sample analysis
  • Food, grain and agricultural material testing
  • Soil, sand and other granular sample screening
  • Cement, abrasives and building material powders
Technical Specifications
Parameter 3D Electromagnetic Type
Drive Type 3D electromagnetic vibration
Sieve Diameter Φ200 mm
Agitation Frequency 221 times/min
Vibration Frequency 149 times/min
Rotation Radius 12.5 mm
Amplitude 5 mm
Motor 3-phase, 380 V, 0.37 kW
Weight 160 kg
Overall Dimensions 660 × 450 × 1060 mm
Main Application Fine powder dispersion and particle size analysis
Ordering and Support

Tell us your sample type, target particle size range and sieve stack, and our engineers will confirm the matching sieve shaker configuration. Standard voltage is 380 V three-phase; alternative voltages can be discussed for export orders.

Standard export packing is offered, with customized packing available on request. Lead time is typically 15 to 30 working days.

Contact Y & X for a 200 mm electromagnetic sieve shaker quotation for your laboratory.
