Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: thickener
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

NSL 0.284r/Min Laboratory Thickener Metallurgy Mining Laboratory Equipment

Name: Thickener Type: Laboratory Thickener
Model: NSL Type Purpose: Metallurgy
Application: Laboratory Origin: China
Classification: Laboratory Machine Material: Gold Ore And Zinc
High Light:

0.284r/min metallurgy mining laboratory equipment


50mm metallurgy mining laboratory equipment


130kg laboratory thickener

NSL type laboratory thickener for metallurgy
Main purpose:
This machine is used in the cyanidation leaching of gold ore and zinc powder exchange and gold extraction process. It is a special equipment for the solid-liquid separation and washing operation of the pulp after cyanidation leaching. It can also be used in uranium mine water metallurgy, light industry, chemical industry, environmental protection Industrial dewatering operations. It has the characteristics of small footprint, energy saving, simplified process configuration, reduced auxiliary equipment and convenient operation.

working principle:

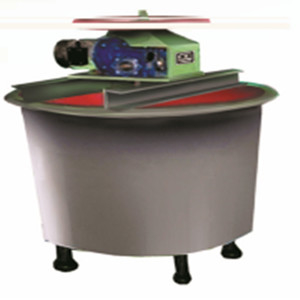

NSL-66 laboratory thickener is a kind of equipment for dewatering the processed product (slurry) of wet beneficiation. It consists of a thickening tank and a mechanical scraper. The solid ore particles of the slurry entering the concentration tank settle to the bottom of the tank under the action of its own gravity to achieve solid-liquid separation. The water overflows from the overflow port on the side of the pool to achieve the purpose of dehydration and concentration.


Main technical parameters of NSL thickener
Parameter item Unit NSL-66
Tank size mm Φ700×530
Rake speed r/min 0.284
Rake lift height mm 50
Precipitation area 0.385
Processing capacity kg/h 9.6~320
Power kw 0.37
Voltage V 380
Dimensions mm 906×784×1008
Quality kg 130

Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
