XFLBT TJT Chemical Mixing Tank With Agitator For Mixing Ore

I'm Online Chat Now

XFLBT TJT Chemical Mixing Tank With Agitator For Mixing Ore

XFLBT TJT Chemical Mixing Tank With Agitator For Mixing Ore
XFLBT TJT Chemical Mixing Tank With Agitator For Mixing Ore

Large Image :  XFLBT TJT Chemical Mixing Tank With Agitator For Mixing Ore

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: XFLBT, TJT type
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

XFLBT TJT Chemical Mixing Tank With Agitator For Mixing Ore

Name: Mixing Tank (JBC) Type: XFLBT, TJT Type
Application: Agitation Before Pulp Flotation Purpose: Chemical, Environmental Protection
Scope Of Application: Concentration ≤45% Motor Speed: 2800r/min
Tank Volume: 5L Spindle Speed: 1000r/min
High Light:

220MM mixing tank with agitator


189MM mixing tank with agitator


5L chemical mixing tank

XFLBT, TJT type mixing tank (JBC)


Main uses and characteristics:

mixing barrels and agitation tanks are mainly used for mixing various ore pulp before flotation, so that the chemical and ore pulp can be fully mixed, and can also be used for mechanical mixing operations in chemical, environmental protection, mining processing laboratories and other industries. The scope of application of the mixing barrel, the concentration is less than or equal to 45%, the specific gravity of the pulp is less than 1.4t/m³, and the particle size is less than 0.2mm. When installing the equipment, the main shaft should be perpendicular to the horizontal plane, and it should be adjusted by adding or subtracting pads at the support. The discharge and electrical pipelines should be installed by the user according to the actual situation. Commissioning: Check whether the fasteners in the equipment are fastened, add water to the tank, soak the baffle, and never allow the spindle to run idly. After 2 hours of test, the equipment runs smoothly, the temperature of the motor is not more than 40-45 °C, and no water should be dripped. oil spill



No. Project Unit Specification and model of mixing barrel Stirring tank specifications and models

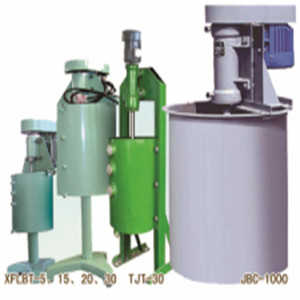

XFLBT-5 XFLBT-15 XFLBT-20 XFLBT-30 TJT-30 JBC-05075 JBC-1000
1 Tank Specifications mm Φ189×220 Φ299×330 Φ299×400 Φ340×420 Φ340×420 Φ500×750 Φ1000×1000
2 Tank volume L 5 15 20 30 30 120 580
3 Spindle speed r/min 2348,2496,2532 1610,2100 1793,2205 1610,2100 800-1100
1000 530
4 Diameter of impeller mm Φ50 Φ65 Φ65 Φ85 Φ120 Φ150 Φ240
5 Motor model   JW5022 JW5622 JW5622 JW5622 YS-7114 Y90S-4 Y90S-6
6 Motor Power W 90 180 180 180 250 1100 1100
7 Motor speed r/min 2800 2800 2800 2800 1400 1400 910


Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
