Product Details:
|
| Name: | Conical Ball Mill | Type: | XMQB Type |
|---|---|---|---|
| Model: | Variable Frequency | Advantage: | Meet The Specific Needs |
| Purpose: | Geology, Chemical | Grinding Ways: | Fine Grinding |
| Mineral Supply: | 200g | Feeding Particle Size: | -3mm |
| High Light: | 200g Laboratory Grinding Mill,500g Laboratory Grinding Mill,ball mill grinder laboratory chemical use |
||

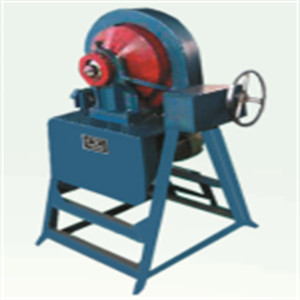

XMQB type variable frequency conical ball mill
Main uses and features:
This product adopts frequency conversion technology, which can increase or slow down the speed by changing the frequency. It is multi-purpose and can meet the specific needs of users. The machine can be used for metallurgy, geology, chemical industry, building materials and coal laboratories, research units and concentrators to conduct ore selectivity research work to finely grind ore, and can also be used for experimental research work in machinery, hydropower, light industry and agriculture. Grind a small amount of material finely.
Parameter
| Main technical parameters of XMQB type variable frequency conical ball mill | |||||
| Parameter item | Unit | XMQ-B Φ150×50 |
XMQ-B Φ240×90 |
XMQ-B Φ350×160 |
XMQ-B Φ180×200 |
| Mineral supply | g | 200 | 500~1000 | 4000 | 250 |
| Feeding particle size | mm | -3 | -3 | -3 | -2 |
| Discharge particle size | mm | -0.074 | -0.074 | -0.074 | -0.074 |
| Electric motor | kw | 0.75 | 0.75 | 1.1 | 1.1 |
| Dimensions | mm | 915×530×1160 | 1052×640×1160 | 700×575×1190 | 1052×613×l160 |
| Machine weight | kg | 150 | 170 | 300 | 150 |
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
