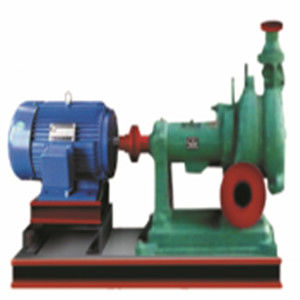

Coal Sand Mining Horizontal Sand Pumps For Construction Industry

Coal  Sand Mining Horizontal Sand Pumps For Construction Industry
Coal  Sand Mining Horizontal Sand Pumps For Construction Industry

Large Image :  Coal Sand Mining Horizontal Sand Pumps For Construction Industry

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: Horizontal Sand Pumps
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

Coal Sand Mining Horizontal Sand Pumps For Construction Industry

Name: Horizontal Sand Pumps Type: Series Horizontal
Purpose: Mine Coal Advantage: Long Lasting
Feature: Easy To Operate Application: Coal Preparation Plant Conveying Medium
Head: 9m Flow: 5m³/h
High Light:

coal horizontal sand pump


9m horizontal sand pump


5m3 per hour sand mining pump

Series Horizontal Sand Pumps for Mine coal


Main uses and characteristics:

It is used to transport ore pulp or other heavy medium liquid weighting agents, and the maximum concentration of ore pulp is 50%. It is an indispensable equipment for conveying ore, mud sand and ash in metallurgy, mining, coal, construction and other departments. It is mainly used for conveying concentrate slurry and discharging tailings in concentrators. It can also be used for conveying medium in coal preparation plant, conveying high-temperature and easy-to-crystallize slurry in aluminum plant, and conveying slurry in cement plant, etc. Structure of sand pump: This machine is composed of motor, solid shaft, mining chamber, impeller, base and so on. It is driven by the motor to transfer through the V-belt pulley, and the impeller under the shaft is adjusted and rotated clockwise. The pulp enters the pump chamber through the feeding port, flows into the pump casing, and outputs the pulp under the action of the impeller. The wear parts of the vertical and horizontal sand pumps are made of high-hard materials. It has the advantages of long service life, reliable performance and convenient operation.



Main technical parameters of series horizontal sand pump
Parameter item Unit 1" 1.5" 2" 2.5"
Head m 9 12 15 21
Flow m³/h 5 10 15 70
Feeding particle size mm <5 <8
Electric motor Model   Y100L-4 Y100L-4 Y132M-4 Y160M-M-4
  Power kw 2.2 3 7.5 11


Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
