Product Details:
|
| Name: | Screw Vacuum Pump | Classification: | Vacuum Pump |
|---|---|---|---|
| Model: | Screw | Type: | 2X |
| Purpose: | Bulb, Vacuum Coated | Weight: | 65kg |
| Dimension: | 315*190*350mm | Machine: | Laboratory Equipment |
| High Light: | 315mm Vertical Chemical Pump,350mm Vertical Chemical Pump,65kg dry screw vacuum pump |
||

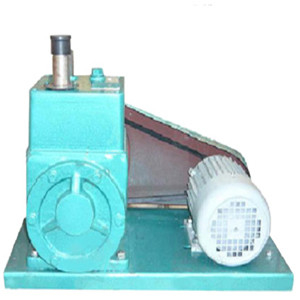

Laboratory 2X series screw vacuum pump
Main uses and characteristics:
2X series rotary vane vacuum pumps are widely used in various light bulbs, vacuum coating, vacuum welding, vacuum plastic, vacuum packaging, chemical, pharmaceutical, thermos, grass-color black and white picture tubes, refrigerators, air conditioners and chemical Equipment and other pumping operations. This product is produced by the only enterprise designated by the original Ministry of Mines and Mines, and implements industry standards.
Parameter
| The main technical parameters | ||||||||
| parameter item | Unit | 2X-3D | 2X-4D | 2X-4 | 2X-4C | 2X-4A | 2X-8A | 2X-15A |
| pumping rate | L/s | 3 | 4 | 4 | 4 | 4 | 8 | 15 |
| Ultimate vacuum | Pa | 6×10-2(5×10-4) | ||||||
| Rotating speed | r/min | 550 | 550 | 1400 | 450 | 450 | 320 | 320 |
| power | kw | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 1.1 | 2.2 |
| Voltage | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Intake caliber | mm | 20-26 | 20-26 | 20-26 | 20-26 | 20-26 | 35 | 40 |
| Operating temperature | ℃ | 最高工作温度<80℃ | ||||||
| oil consumption | L | 3.5 | 4 | 1.1 | 1.1 | 1 | 2 | 2.8 |
| Dimensions | mm | 315×190×350 | 340×190×350 | 530×151×280 | 292×231×312 | 560×340×400 | 790×430×540 | 790×530×540 |
| weight | kg | 65 | 73 | 28 | 60 | 66 | 158 | 202 |
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
FAQ to save your precious time!
Q1: What's the standard length of your profiles and tube?
A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.
Q2: What's your MOQ?
A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.
Q3: what is your payment terms?
A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.
Q4: What's the lead time for small order and mass production?
A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.
Q5: What certification do you have?
A: We have ISO 9001:2008 certificate.
