Concentration Equipment Adsorption Tank

Description
Name: Adsorption Tank Type: JJCA
Purpose: Metallurgy, Geology Industry: Light Industry
Process: Laboratory Cyanidation Process Pulp Concentration: Less Than 45%
Spindle Speed: 88r/min Motor Power: 2.2kw
High Light:

2.2kw Concentration Equipment

,

88r/min Concentration Equipment

,

760mm laboratory adsorption tank

JJCA laboratory adsorption tank



Main uses and characteristics:

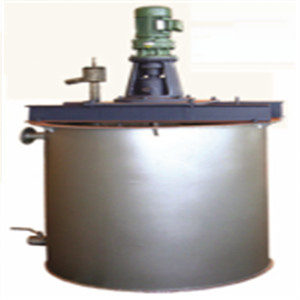

JJCA type laboratory adsorption tank is mainly used in the laboratory cyanidation process of metallurgy, chemical industry and light industry. It is suitable for leaching and adsorption of pulp with the proportion of pulp being about 1.4%, the particle size of pulp being -200 mesh accounting for 90%, and the pulp concentration being less than 45%. The machine is equipped with a carbon separator and a carbon pump.



Parameter

Main technical parameters of JJCA adsorption tank
Project Unit JJCA1520 JJCA1012
Effective volume 3 0.8
Tank Specifications mm Φ1500×2000 Φ1000×1200
Diameter of impeller mm 760 400
Pulp specific gravity t/m³ 1.4
pulp concentration % <45
Pulp fineness % -200target 85~90% accoumt
Motor Power kw 2.2 1.1
Spindle speed r/min 88 156



Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
