Product Details:
|
| Name: | Jaw Crusher | Type: | PE |
|---|---|---|---|
| Purpose: | Metallurgy, Geology | Advantage: | The Particle Size Of The Finished Product Is Uniform |
| Feature: | Low Power Consumption | Feed Size: | 150×750 Mm |
| Max. Feed Size: | 125mm | Adjustment Range Of Discharging: | 10-40 Mm |
| High Light: | 150mm Laboratory Rock Crusher,750mm Laboratory Rock Crusher,15kw double toggle jaw crusher |
||

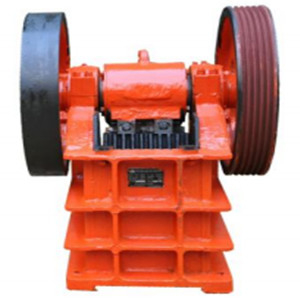

Series jaw crusher
Introduction Introduction:
Jaw crusher is suitable for metallurgy, mining, construction, railway sector and mobile quarry, as a coarse crushing and medium crushing of various ores with compressive strength below 250Mpa. It has the advantages of large crushing ratio, uniform particle size of finished products, low power consumption and convenient maintenance.
Parameter
| Item | Unit | PE150×750 | PE250×1000 | PE350×750 | PE250×400 | PE400×600 |
|
Feed Size |
mm |
150×750 |
250×1000 |
350×750 |
250×400 |
400×600 |
| Max. Fe ed Size | mm | 125 | 210 | 300 | 210 | 340 |
|
Adjust ment Range of Disch arging |
mm |
10-40 |
15-50 |
25-75 |
20-80 |
40-100 |
| Throughput | t/h | 8-35 | 15-60 | 30-52 | 5-15 | 10-40 |
| Motor Power | kw | 15 | 37 | 37 | 15 | 30 |
|
Outline Size |
mm |
1180×1525× 1061 |
1530×1992 ×1380 |
1650×1870× 1597 |
1108×1090 ×1392 |
1730×1710 ×1700 |
| Weight | kg | 2800 | 6485 | 6500 | 2450 | 6500 |
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
