Product Details:
|
| Name: | Sealed Disc Pulverizer | Model: | Vertical Sealed Disc |
|---|---|---|---|
| Attributes: | Pulverizer | Type: | XPF Type |
| Advantage: | Environmental Protection | Purpose: | Mining, Coal |
| Function: | Alternative To Manual Grinding | Feature: | Automatic Dust Removal, No Pollution |
| High Light: | 200t Laboratory Rock Crusher,3mm Laboratory Rock Crusher,940r/min laboratory disc pulverizer |
||

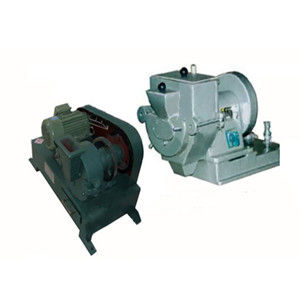

Laboratory XPF type sealed disc pulverizer, vertical environmental protection pulverizer
Main uses and characteristics:
It is suitable for mining, coal, coal washing plants, power plants, chemical plants and laboratories of scientific research institutes and universities to crush and sample coal, bauxite and other materials, instead of manual grinding. Automatic dust removal, no pollution, suitable for indoor operations. This product is produced by the only enterprise designated by the original Ministry of Mines and Mines, and implements industry standards.
Parameter
| The main technical parameters | ||||||||||||
| parameter item | Unit | XPFΦ175 | XPFΦ175T | XPFΦ175Z | SPΦ150 | SPΦ150(ceramics) | XPF150B | MPΦ175 | MPΦ200 | MPΦ250 | MPΦ300 | P1280vertical |
| throughput | kg/h | ≤25 | ≤35 | ≤35 | ≤8 | ≤8 | ≤60 | ≤35 | ≤35 | ≤160 | ≤100 | ≤200 |
| Disc diameter | mm | Φ175 | Φ175 | Φ175 | Φ150 | Φ150 | Φ150 | Φ175 | Φ200 | Φ250 | Φ300 | —— |
| Feed particle size | mm | 2-3 | 4-6 | 4-6 | 4-6 | 1 | 6 | 6 | 8 | 8 | 10 | ≤30 |
| Discharge particle size | mm | -0.15 | 0.07 | 0.07 | 0.07 | 0.074 | 0.2-0.074 | 0.5-0.074 | 80-100 | 3-0.074 | 0.4 | ≤1 |
| Disc speed | r/min | 940 | 940 | 940 | 1050 | 940 | 1050 | 980 | 950 | 800 | 800 | —— |
| power | kw | 1.1 | 1.1 | 1.1 | 1.1 | 0.6 | 1.1 | 1.5 | 2.2 | 2.2 | 4 | 3 |
| Voltage | v | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| quality | kg | 180 | 180 | 180 | 80 | 80 | 95 | 130 | 150 | 165 | 195 | 360 |
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.
The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.
Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.
The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
