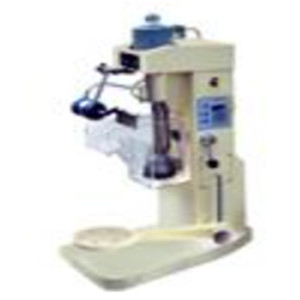

XFD Single Tank Laboratory Flotation Machine Mechanical Flotation Cell

XFD Single Tank Laboratory Flotation Machine Mechanical Flotation Cell
XFD Single Tank Laboratory Flotation Machine Mechanical Flotation Cell

Large Image :  XFD Single Tank Laboratory Flotation Machine Mechanical Flotation Cell

Product Details:
Place of Origin: China
Brand Name: Y&X
Certification: ISO9001
Model Number: flotation machine
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Cartons
Delivery Time: 1-3 working day
Payment Terms: T/T, L/C

XFD Single Tank Laboratory Flotation Machine Mechanical Flotation Cell

Name: Single Tank Flotation Machine Model: Single Tank Flotation Machine
Appertain: Flotation Machine Type: XFD
Purpose: Stirring, Scrubbing, Separating Material: Mineral Samples
Application: Geology, Metallurgy, Feature: Digital Display
High Light:

mineral samples Laboratory Flotation Machine


1400r/min Single Tank Laboratory Flotation Machine


mechanical flotation cell with digital display

XFD single tank flotation machine



XFD series single-tank flotation machine is suitable for stirring, scrubbing, separating and selecting a small amount of mineral samples in the laboratories of mining and scientific research departments such as geology, metallurgy, building materials, and chemical industry. XFDⅢ single-slot flotation machine is an updated product of XFD type. It adopts frequency conversion technology, impeller stepless speed regulation, digital display, accurate adjustment and reliable operation. The machine adopts external inflation, inflation is adjustable, accurate and stable. (The temperature control device can be configured separately according to user needs)



project Unit Main technical parameters of single cell flotation agent
Flotation cell volume L 0.5 0.75 1 1.5 3 8
Impeller speed XFD r/min 2130,2340,2590 1700,1900,2100 1590,1750,1910 1544,1708,1890 1400
XFDⅢ r/min 0~2600 --
Scraper speed XFD r/min 15,30 7.9,19.1 8.6,12.9,17.2
XFDⅢ r/min 14,20 --
Diameter of impeller mm Φ45 Φ55 Φ60 Φ70 Φ100
Feeding particle size mm 0.05~0.2
Spindle motor XFD type YS-5612 2800(r/min)90W three 220V JW-6324 1410(r/min)250W three 220V
XFDⅢ YS-5612 120W --
Scraper motor XFDⅢ type SD30 --
Dimensions XFD 502×263×628 570×263×668   380×505×970
XFDⅢ mm 490×322×720 490×322×792 --
weight XFD kg 30 33 50 72
XFDⅢ kg 28 30 --


Company profile

Y&X Beijing Technology Co., Ltd. was established in 2014 and is located in Beijing, the capital of China. Our company has become a professional enterprise integrating scientific research, design, new product development, production and manufacturing with strong technical force. As a family group, the mission from the beginning was to expand overseas markets and provide one-stop professional for overseas mining companies.

The company specializes in the research and supply of mineral processing reagents and equipments, including mineral processing equipment and laboratory mineral processing equipment; products are widely used in metallurgy, geology, petroleum, coal, chemicals, building materials, environmental protection, non-ferrous and non-metallic mines, Research departments in industries such as dressing plants, mineral processing laboratories in colleges and universities.

Laboratory equipment for mineral processing: mainly include crushing, grinding, screening, grading, magnetic separation, flotation, assay, sample preparation, leaching, analysis-electrolysis, shaking table, chute and other laboratory equipment and gravity separation equipment.

Our products sell well in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other countries and regions.

The enterprise has passed the IS09001 quality management system certification, and the product quality conforms to the relevant technical standards promulgated by the state and the enterprise.
